High Efficiency Bottle Conveyor Systems with POM and Stainless Steel Chain Plates for Reliable Material Handling
Bottle Conveyor Systems
We provide professional Chain Plate Turning Conveyor System that can accurately and efficiently stack and arrange goods, significantly improving the operational efficiency of warehousing and logistics.

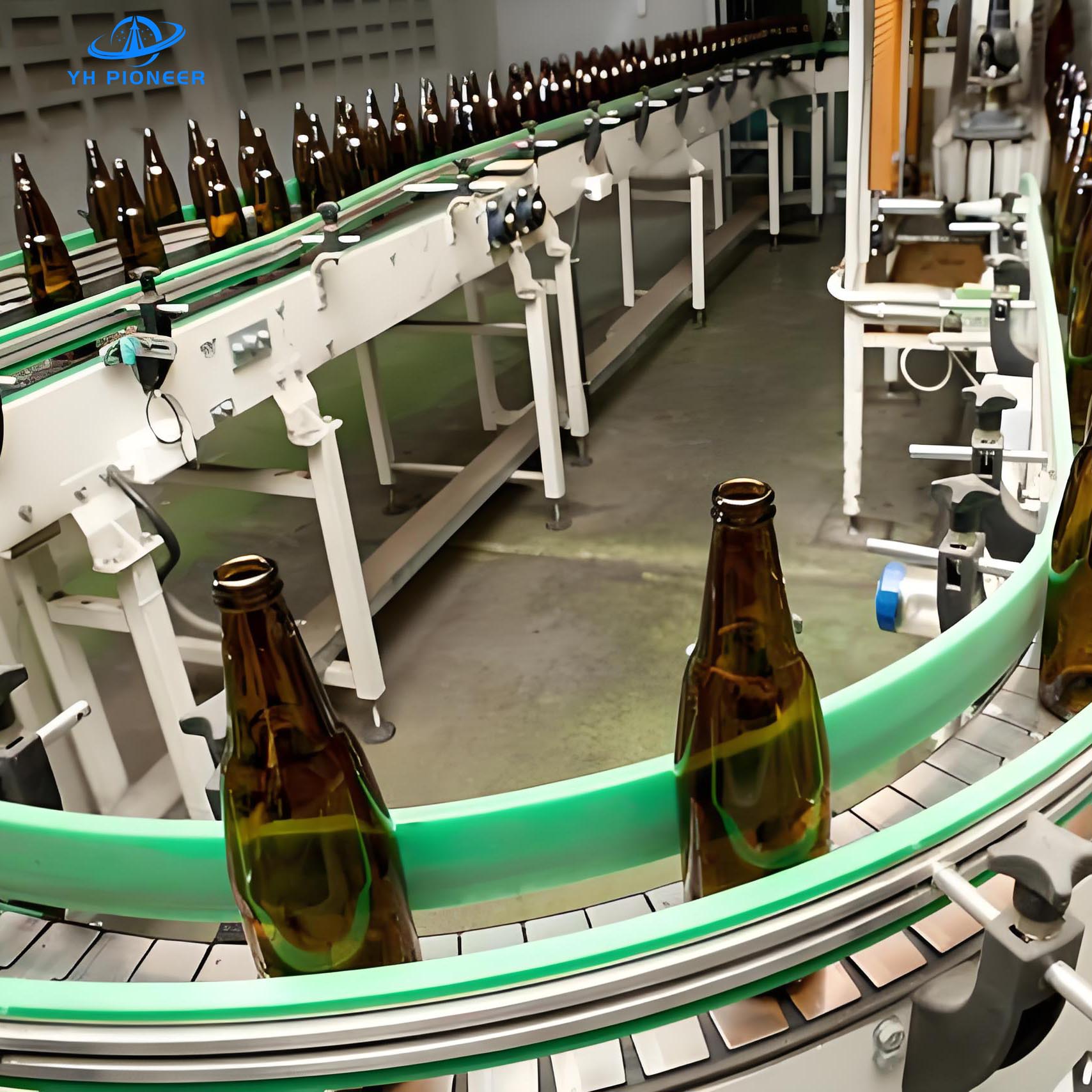

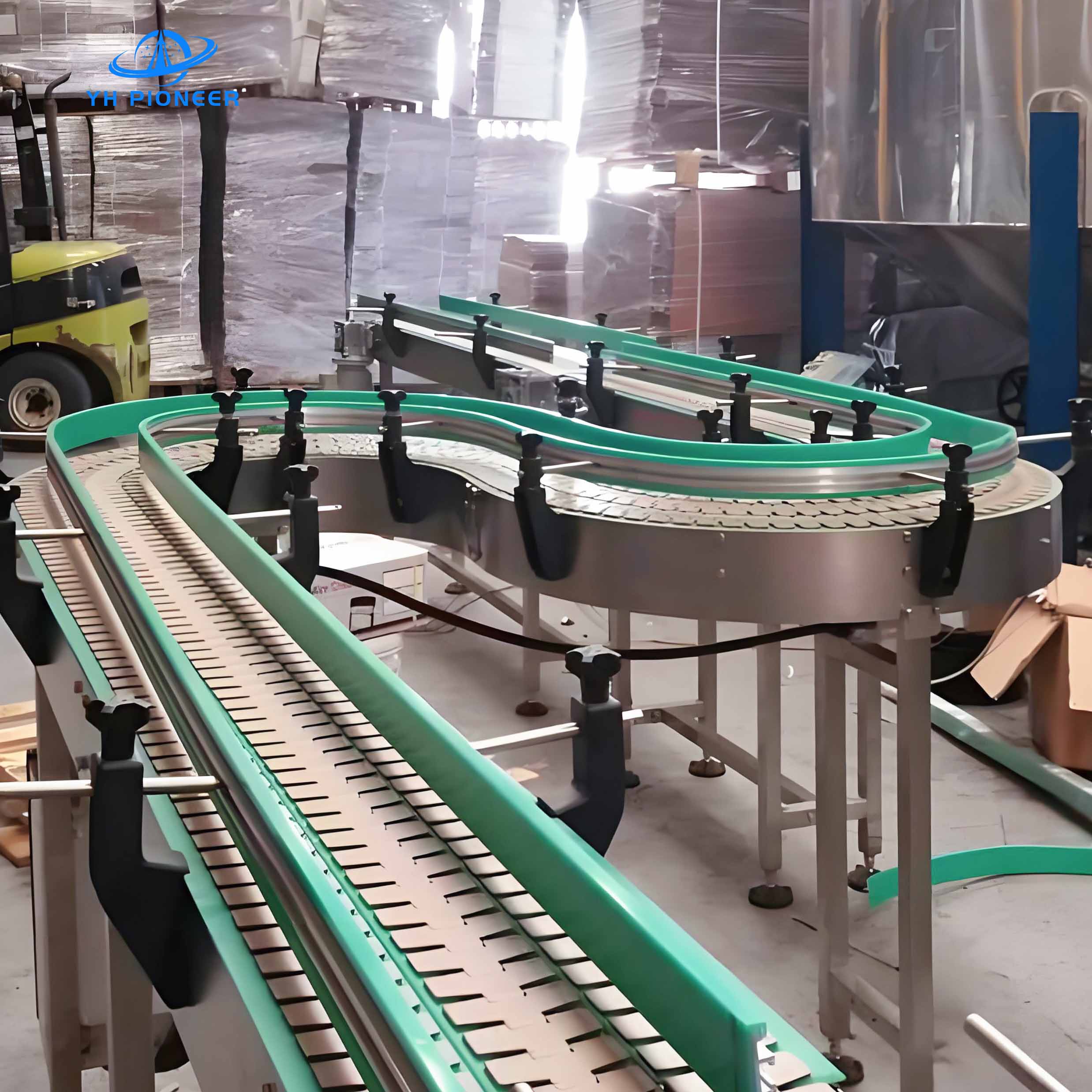

The Bottle Conveyor Systems are designed for the efficient and reliable transportation of bottles in various industries. These systems are built to handle a wide range of bottle types, including glass bottles, PET bottles, and cans, ensuring smooth and stable conveyance. Made from durable materials and equipped with precise control systems, Bottle Conveyor Systems are ideal for maintaining high production standards in environments where hygiene and efficiency are paramount.
TECHNOLOGICAL ADVANTAGE
Flat and Smooth Conveying Surface: Reduces friction, ensuring smooth transitions and the ability to
convey various types of bottles and packages.
Diverse Material Options: Chain plates are available in stainless steel and engineering
plastics, offering a variety of specifications to meet different
industry requirements.
Accurate and Stable Conveying Speed: Ensures precise synchronization for reliable conveyance.
Easy Cleaning: Most models can be directly washed or soaked, meeting the hygiene
standards of the food and beverage industries.
Flexible Layout: Can be configured for horizontal, inclined, and curved conveyance
within a single line.
Simple Structure and Easy Maintenance: The system's straightforward design makes it easy to maintain and
repair, with easy replacement of wear parts like chain plates and
chains.
PRODUCT SPECIFICATIONS
Power: AC220V/sph or AC380V/3ph, suitable for different power supply
requirements.
Output (KW): Ranges from 0.2 to 0.75, providing sufficient power for various
applications.
Structure Material: Constructed from aluminum (AL), carbon steel (CS), and stainless
steel (SUS) for durability and corrosion resistance.
Chain Material: Made from POM and SUS, offering strength and wear resistance.
Chain Type: Available in tabletop chain, anti-slip chain, and SUS chain;
contact us for more options.
Chain Width (mm): Options include 63.5, 82.6, 114.3, 152.4, 190.5, 254, 304.8, and
custom sizes.
Conveyor Width (mm): Customizable to fit specific production line requirements.
Conveyor Length (mm): Customizable to match the layout of the facility.
Conveyor Height (mm): Customizable to meet specific operational heights.
Speed (m/min): Capable of speeds up to 45 meters per minute.
Load (kg): Maximum load of 50 kg (horizontal) and 25 kg (vertical).
Working Tension (N): Maximum tension of 1250 N.
Working Temperature (℃): Operates within a temperature range of -20 to +60 degrees Celsius.
PRODUCT MATERIALS
Frame: Constructed from aluminum (AL), carbon steel (CS), and stainless
steel (SUS) for durability and corrosion resistance.
Chain Plates: Made from POM and SUS, offering strength and wear resistance.
Levelling Feet: High-quality plastic and stainless steel for stability and
durability.
Support Components: Stainless steel for a sturdy and secure foundation.
Accessories: Stainless steel and plastic for product guiding and handling.
Profiles and Guides: High-density materials for low friction and smooth operation.
Curves and Tracks: Engineered materials for guiding conveyor chains.
Plastic Parts: Customized for bottle alignment and dosing.
PRODUCT APPLICATION
Food Industry: Ideal for single-line conveyance in labeling, filling, and
cleaning equipment, meeting the high supply demands of sterilizers,
bottle storage platforms, and cold bottle machines.
Pharmaceutical Industry: Used for the packaging and conveyance of pharmaceuticals, ensuring
product hygiene and safety during production.
Chemical Industry: Suitable for conveying granular or powdered materials,
facilitating the transition from raw materials to finished
products.
SERVIC and SUPPORT
We provide comprehensive maintenance services to ensure the Bottle
Conveyor Systems remains in optimal condition. Our dedicated
support team is available to assist with any technical queries or
service needs.
PRODUCT PARAMENTERS
Power | AC220V/sph,AC380V/3ph |
Output(KW) | 0.2-0.75 |
Structure material | AL,CS,SUS |
Chain material | POM,SUS |
Chain type | Table top chain,Anti-slip chain,SUS chain,Please contact us for
more questions. |
Chain width(mm) | 63.5,82.6,114.3,152.4,190.5,254,304.8, customized |
Conveyor width(mm) | customized |
Conveyor length(mm) | customized |
Conveyor height(mm) | customized |
Speed(m/min) | ≤45 |
Load(kg) | ≤50(Horizontal),≤25(Vertical) |
Working tension(N) | ≤1250 |
Working temperature(℃) | -20～+60 |
*It can be modified according to customer requirements.
Please click the form below to download and fill it out to inquire
about detailed specifications and parameter options.
