Gantry Palletizing System for Cardboard Boxes and Crates with
Robotics Teaching Control Mode

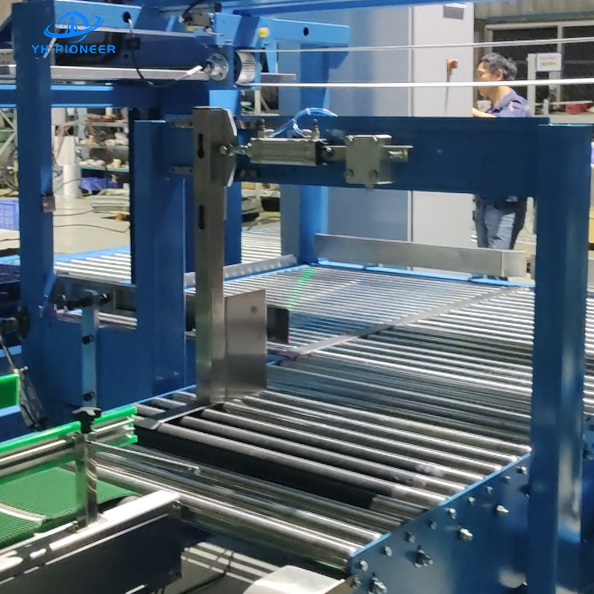

Gantry Palletizing System
We provide professional Gantry Palletizing System that can accurately and efficiently stack and arrange goods, significantly improving the operational efficiency of warehousing and logistics.
The Gantry Palletizing System is an advanced material handling solution designed for high-speed palletizing of various objects such as cardboard boxes, crates, and woven bags. This system is engineered to optimize the palletizing process, ensuring rapid and accurate placement of items on pallets.
PRODUCT PARAMENTERS
Handling objects | Cardboard boxes, crates, woven bags, etc. | |
Processing Capability | Maximum 460 workpieces/hour | |
Palletizing Height | 1.2-2 Meters | |
Maximum palletizing weight | Less than 30kg | |
Control Mode | Robotics Teaching System Or Automatic Programming | |
Body Dimension | 2100L×2600W×2500H | |
Body weight | Approx. 300kg | |
Power supply | 380V 3KW | |
*It can be modified according to customer requirements.
Please click the form below to download and fill it out to inquire
about detailed specifications and parameter options.
High Efficiency and Stability: The Gantry Palletizing System completes palletizing tasks quickly
and accurately, with stable and reliable operation, enhancing
production efficiency.
High Precision Positioning: Advanced control systems and sensors enable high-precision
positioning and grabbing, ensuring neat and stable pallet stacks.
Strong Adaptability: Capable of adapting to palletizing needs of various shapes, sizes,
and weights, with adjustable mechanical arms and programmable
parameters for flexibility in diverse production scenarios.
Space-Saving Design: The gantry structure is thoughtfully designed to occupy minimal
space, making it ideal for production environments with limited
space.
High Level of Automation: Reduces manual intervention, decreases labor intensity and costs,
and improves safety and reliability in production.
Modular and Scalable: Can be customized with additional axes and specialized grippers
for a wide range of industrial applications.
PRODUCT SPECIFICATIONS
Handling Objects: Designed to handle cardboard boxes, crates, woven bags, and
similar items.
Processing Capability: Capable of up to 460 workpieces per hour for high throughput.
Palletizing Height: Adjustable from 1.2 to 2 meters to accommodate various pallet
heights.
Maximum Palletizing Weight: Less than 30kg, suitable for a wide range of products.
Control Mode: Utilizes a Robotics Teaching System or Automatic Programming for
precise operation.
Body Dimension: 2100mm in length, 2600mm in width, and 2500mm in height for a
compact and efficient design.
Body Weight: Approximately 300kg, indicating a sturdy construction.
Power Supply: Requires 380V and 3KW to ensure reliable performance
COMPONENT MATERIALS
Frame Structure: Constructed from U-shaped steel for support and durability, with
additional materials such as stainless and carbon steel to ensure
resistance to corrosion and wear.
PRODUCT APPLICATION
Food and Beverage Industry: Used for palletizing bottles, canned goods, and packaged food
products.
Pharmaceutical Industry: Ideal for palletizing pharmaceutical packaging, medical devices,
and other healthcare products.
Cosmetics Industry: Suited for packaging and palletizing in the cosmetics sector.
Chemical Industry: Efficient for palletizing drummed, bagged, and bulk products.
Logistics and Warehousing: Automates palletizing in logistics centers, warehouses, and
distribution centers, improving efficiency and reducing manpower
needs.
SERVIC and SUPPORT
We provide comprehensive maintenance services to ensure the Gantry
Palletizing System remains in optimal condition. Our dedicated
support team is available to assist with any technical queries or
service needs.
