Customizable Rotary Turntable Conveyor with 3.4rpm Turning Speed and 500mm Min Height for Versatile Applications

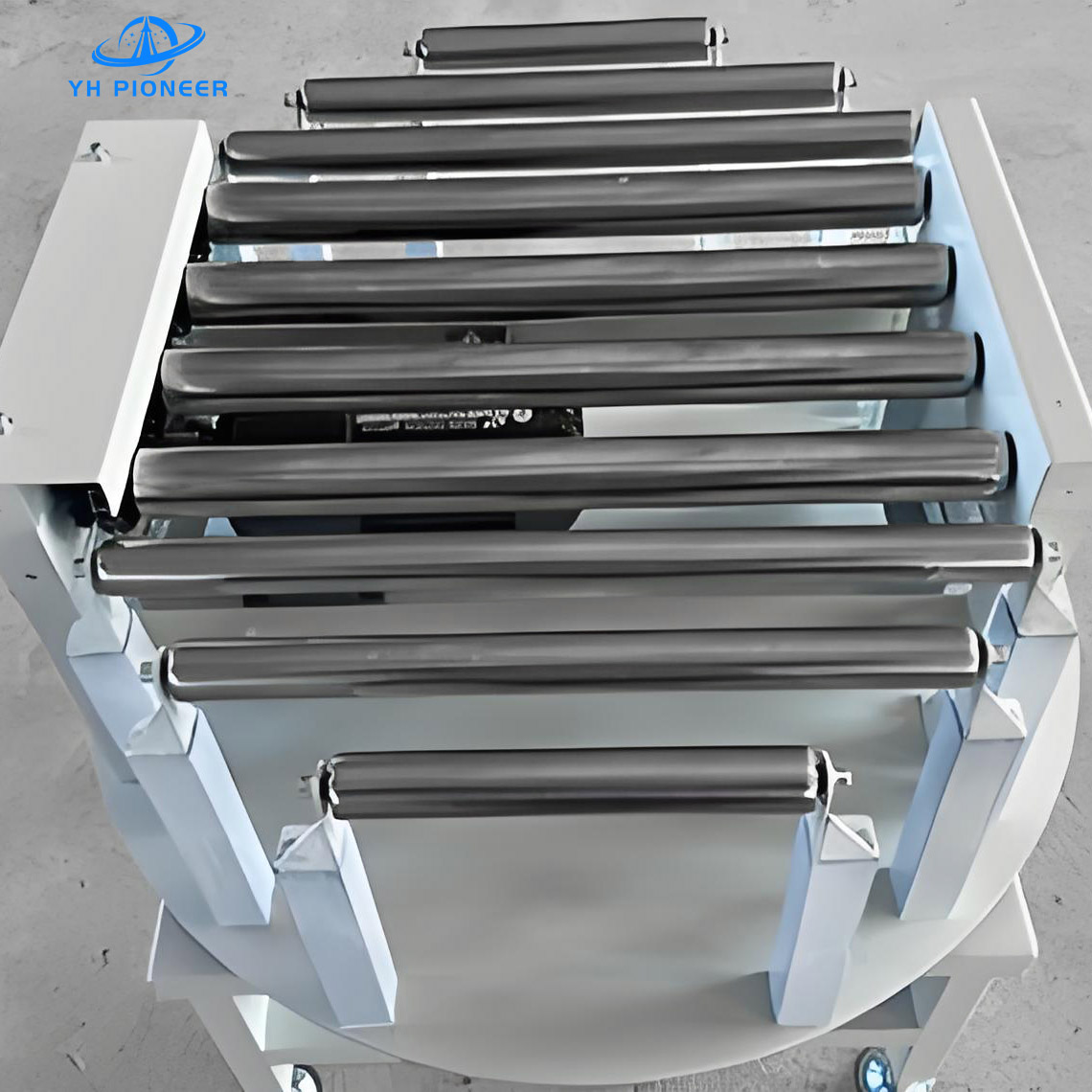

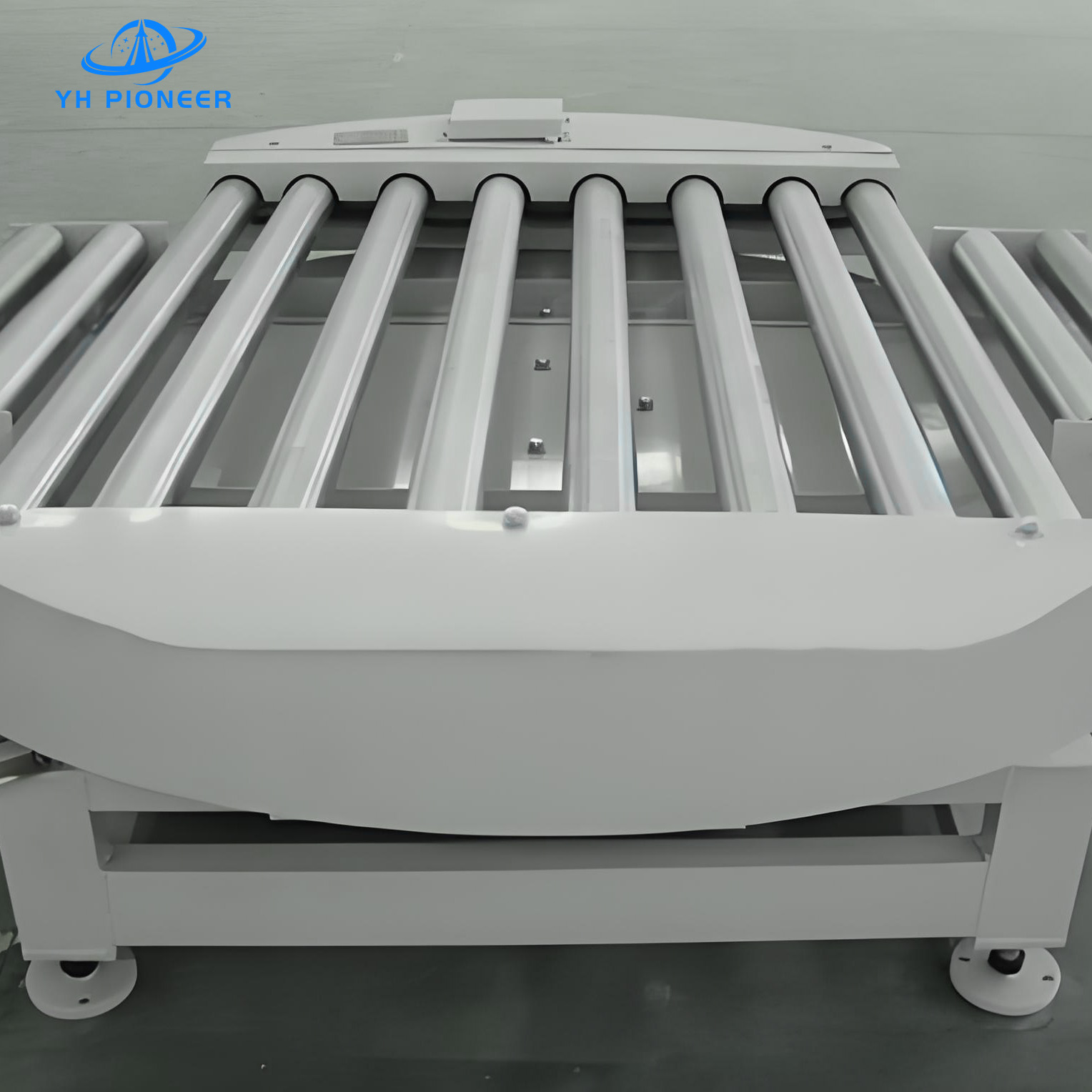

Rotary Turntable Conveyor Systems
We provide professional Rotary Turntable Conveyor System that can accurately and efficiently stack and arrange goods, significantly improving the operational efficiency of warehousing and logistics.
The Rotary Turntable Conveyor is a sophisticated material handling solution designed for efficient and gentle transportation of goods in various industrial settings. This system is engineered for reliability and durability, offering a customizable platform that can accommodate a broad range of product sizes, weights, and shapes. It provides a seamless integration into existing production lines or warehouse systems, enhancing the flow of materials with minimal manual intervention.
TECHNOLOGICAL ADVANTAGE
*High adaptability to various cargo sizes, weights, and shapes,
making it a versatile solution for diverse material handling needs.
*High reliability due to a simple structure that is easy to
maintain and operate.
*Easy integration with other conveyor equipment or specialized
machinery to form complex material flow systems.
*Customizability to meet specific process requirements based on
client demands.
*High efficiency in material transport, capable of handling high
volumes at speed.
*Low maintenance costs due to the straightforward structure and
durable construction.
*Strong load capacity to manage heavy material loads with ease.
*Flexibility in layout, suitable for straight, inclined, or curved
conveying to fit various plant configurations.
*Enhanced safety features including protective guards and emergency
stop switches.
PRODUCT SPECIFICATIONS
Load Capacity (Max): Up to 1000kg, ensuring the system can handle substantial weights.
Diameter of Roller (D): Φ89mm, designed to provide stable support for the conveyed items.
Max Length of Conveyor (L): 1.85m, allowing for sufficient transportation distance in a single
unit.
Min Height of Conveyor (H): 500mm, offering a suitable working height for most applications.
Turning Speed: 3.4rpm/min, providing a controlled and gentle rotation for the
items on the conveyor.
Power of Motor: 0.37-0.75kw, indicating the range of power needed for efficient
operation.
Conveying Speed (Max): Up to 20m/min, ensuring fast transportation of goods.
PRODUCT MATERIALS
Rollers: The core components made from materials like carbon steel,
stainless steel, aluminum, PVC, ensuring durability and corrosion
resistance. The surface may be smooth or textured to increase
friction as needed.
Frame: Constructed from carbon steel plastic spray, stainless steel, or
aluminum profiles to provide a robust support structure for the
rollers.
Drive Unit: Comprises motors and reducers, designed to power the rotation of
the rollers effectively.
PRODUCT APPLICATION
Warehouse Systems: Ideal for use in warehouse environments where goods need to be
moved efficiently from one area to another.
Ground Storage: Effective in ground storage facilities for the transportation of
pallets and heavy goods.
Cold Storage: Designed for use in cold storage conditions where temperature
resistance is required.
Assembly Lines: Used in assembly lines for engines, transformers, and automobiles,
ensuring the efficient movement of parts through various stages of
inspection, painting, and assembly.
SERVIC and SUPPORT
We provide comprehensive maintenance services to ensure the Rotary
Turntable Conveyor Systems remains in optimal condition. Our
dedicated support team is available to assist with any technical
queries or service needs.
PRODUCT PARAMENTERS
Load of Conveyor(Max) | Max 1000kg |
Diameter of Roller(D) | Φ89 |
Max Length of Conveyor(L) | 1.85mm |
Min Height of Conveyor (H) | 500 |
Turning Speed | 3.4rpm/min |
Min Height of Conveyor (H) | 500 |
Power of Motor(kw) | 0.37-0.75 |
Conveying Speed (Max) | Max 20m/min |
*It can be modified according to customer requirements.
Please click the form below to download and fill it out to inquire
about detailed specifications and parameter options.
|
|
