We provide professional Seamless Snap-on Conveyor Chain with Rubber Top and Bearings, support the conveying of various types , and provide a variety of conveying types.

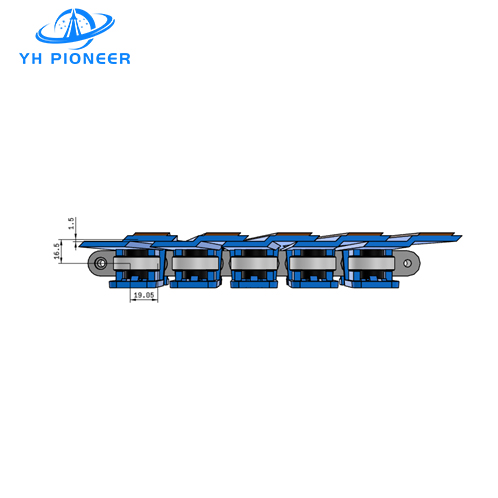

The Seamless Snap-on Conveyor Chain with Rubber Top and Bearings is an innovative conveyor chain system designed for versatile and efficient material handling in turning and spiral conveyors. This chain is engineered to provide a seamless and reliable transportation solution for a wide range of materials, especially those that require friction control and gentle handling.

* Rubber Top Design: The rubber surface increases friction, aiding in the stable conveyance of slippery materials.
* High Friction and Material Control: The rubber top provides better grip and control over the conveyed materials, reducing slippage or rolling during transit.
* Bearing Configuration: Equipped with bearings to reduce friction and wear, enhancing the chain's lifespan and reliability.
* Customizable Solutions: Available in various materials and specifications to meet different application requirements.

* Enhanced Grip: The rubber surface offers improved traction, ensuring materials stay in place during turning or spiral conveying.
* Durability: The combination of POM and natural rubber ensures the chain is long-lasting, even under continuous operation.
* Low Maintenance: The modular design allows for easy replacement of parts, reducing downtime and maintenance costs.
* Versatility: The chain's design can be adapted to various production line layouts and requirements.

PRODUCT SPECIFICATIONS

* Product Name: Seamless Snap-on Conveyor Chain with Rubber Top and Bearings
* Application: Suitable for horizontal turning and spiral conveying in various industries.
* Material: Polyoxymethylene (POM) in coffee color for the card plates, with natural rubber in green for the rubber top.
* Base Chain: Standard 12A roller chain, available in carbon steel and stainless steel.
* Maximum Speed: 50 meters/minute with lubricant; 30 meters/minute with dry conditions.
* Working Load: 3200N for carbon steel, 1600N for stainless steel.
* Maximum Conveying Length: 30 meters for carbon steel, 24 meters for stainless steel.
* Packaging: Each piece is 1.524 meters long.
* Width: 304.8 mm.
* Weight: 5.7 kg/m.
* Reverse Bending Radius: 150 mm.
* Turning Radius: 500 mm.

PRODUCT MATERIALS

* Card Plates: Made from POM, offering strength and rigidity.
* Rubber Top: Crafted from natural rubber for high friction and durability.
* Bearings: Made from materials such as POM and 6200Z (bearing steel) for smooth operation.

PRODUCT APPLICATIONS

* Food and Beverage Industry: For the gentle and hygienic transport of food products and beverages.
* Chemical Industry: Suitable for handling chemicals in turning conveyors.
* Pharmaceutical Industry: Ideal for the controlled movement of pharmaceutical products in automated production lines.
