We provide professional Seamless Snap-on Sideflex Conveyor Chain with Bearings, support the conveying of various types , and provide a variety of conveying types.
The Modular Belt with Rubber Top is an advanced conveyor belt system designed for applications within the beverage and brewing industries, as well as for use in packaging machinery conveyors. This belt offers a combination of high elasticity, strength, and low noise operation, making it ideal for a variety of material handling tasks.

* Rubber Surface: The belt's surface with rubber provides excellent friction and material control, reducing the risk of product slippage during conveyance.
* Special Attachment Process: The rubber is attached to the belt through a special process, ensuring a strong bond and offering additional wear and impact resistance.
* Bearing Material Options: Bearings can be made from POM or 6200Z (bearing steel), catering to different load capacities and environmental conditions.

* Enhanced Grip: The rubber surface offers improved traction, ensuring materials stay in place during turning or spiral conveying.
* Durability: The combination of POM and natural rubber ensures the belt is long-lasting, even under continuous operation.
* Customizable Solutions: Available in various materials and specifications to meet different application requirements.
* Versatility: The chain's design can be adapted to various production line layouts and requirements.

PRODUCT SPECIFICATIONS
* Application: Suitable for beverage and beer industries, packaging machinery conveyors.
* Belt Material: Silicon-oil-infused Polyoxymethylene (POM) in grey, with a green rubber surface, operating temperature range -30°C to +90°C.
* Pin Material: Polypropylene (PP).
* Belt Feature: The bottom surface of the module is self-lubricating and low noise, while the top rubber surface offers high elasticity and strength, environmentally friendly and safe.
* Rubber Surface Hardness (RSH): 65±5.
* Belt Load: 16000N per meter.
* Weight: 9.53 kg/m².
* Standard Module Width Multiplier: 1.

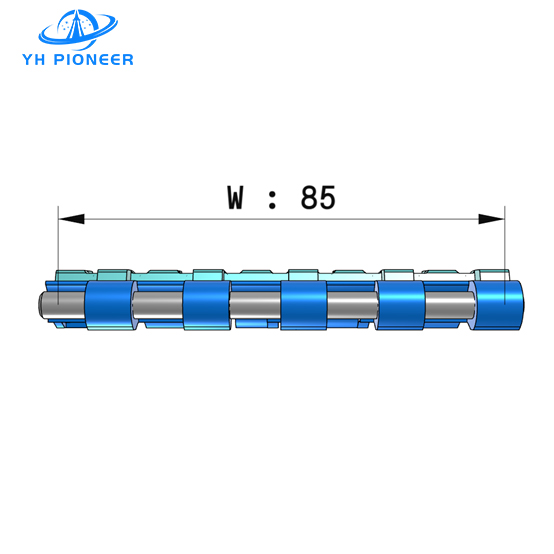

* Belt Width: 85.0 mm.
* Standard Pitch Multiplier: 1.
* Standard Belt Width (MBT): W = 85 mm times the number of standard modules (N).

PRODUCT MATERIALS

* Chain Plates: Made from PP, known for its strength and rigidity.
* Rubber: The surface rubber is made from natural rubber, providing high elasticity and durability.
* Bearings: Made from materials such as POM or 6200Z (bearing steel) for reliable performance under load.

PRODUCT APPLICATIONS

* Beverage and Brewing Industry: For the gentle and hygienic transport of bottles, cans, and other containers.
* Packaging Machinery: Particularly useful in environments where turning conveyor is required for product sorting and packaging.
* Food, Chemical, and Pharmaceutical Industries: Suitable for automated production lines that require reliable and safe material handling.
