Low - Friction Seamless Case Conveyor Chain with Cold - Rolled Austenitic Stainless Steel Axles for Reliable Operation
Seamless Case Conveyor Chain
We provide professional Seamless Case Conveyor Chain, support the conveying of various types , and provide a variety of conveying types.
The Seamless Case Conveyor Chain is an innovative conveyor chain designed for the safe and smooth transportation of various items. Its zero-gap surface design ensures the secure conveyance of goods, making it ideal for a wide range of applications where reliability and efficiency are paramount.
PRODUCT ADVANTAGE
* Zero-Gap Surface Design: Provides a safe and smooth conveyance of items, reducing the risk
of product damage or spillage.
* Flexibility in Operation: Capable of flexible movement in both horizontal and vertical
directions with a small side bend radius.
* High-Strength Workload: Special connections and pins ensure the chain can handle high
workloads, even in harsh environments.
* Ease of Cleaning: Suitable for various working environments, offering high work load
capacity and long service life.
* Low Friction Coefficient: Provides smooth, reliable, and low-noise conveyance.
PRODUCT SPECIFICATIONS
*Product Name: Seamless Case Conveyor Chain
*Application: Suitable for smooth and safe conveyance of various items with a
zero-gap surface design.
*Chain Plate Material: Polyoxymethylene (POM) in grey, with a temperature range of -30°C
to +90°C.
*Pin Material: Cold-rolled austenitic stainless steel.
*Chain Plate Load at 25°C: 2670N/m for POM.
*Chain Plate Width (CW): 55.0 mm
*Weight: 1.46 kg/m
*Minimum Turning Radius (R): 125.0 mm
*Reverse Bending Radius (RD): 63.5 mm
PRODUCT MATERIALS
*Chain Plate: Made from POM, known for its strength and rigidity, suitable for
heavy-duty applications.
*Pin Axle: Crafted from cold-rolled austenitic stainless steel for enhanced
durability and corrosion resistance.
PRODUCT APPLICATIONS
Heavy Container and Box Conveyance: Ideal for transporting heavy containers and boxes, especially in production lines where long-distance conveyance of empty or full containers is required.
PRODUCT PARAMENT
Application | Seamless design, conveying the products smoothly. |
Chain plate material | Polyoxymethylene (POM) gray, operating temperature -30°C~+90°C |
Pin material | Stainless steel |
Chain Load (25°C) | POM is 2670N/M |

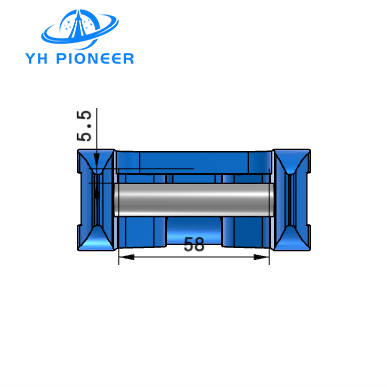

Chain width | 55.0 mm |
Weight | 1.46 kg/m |
Minimum sideflex raduis | 125.0 mm |
Opposite bending raduis | 63.5 mm |
*It can be modified according to customer requirements.
Please contact us for the latest specification stock and quotation
