Space - Efficient Case Conveyor Chain for Tight Radius Turns and S - Shaped Conveying Paths
Case Conveyor Chain
We provide professional Case Conveyor Chain, support the conveying of various types , and provide a variety of conveying types.
The Case Conveyor Chain is a high-performance conveyor chain system designed for the transportation of boxed and bagged items in a variety of industries. With its unique design that allows for spiral conveying and S-shaped conveying, it offers flexibility and efficiency in material handling.

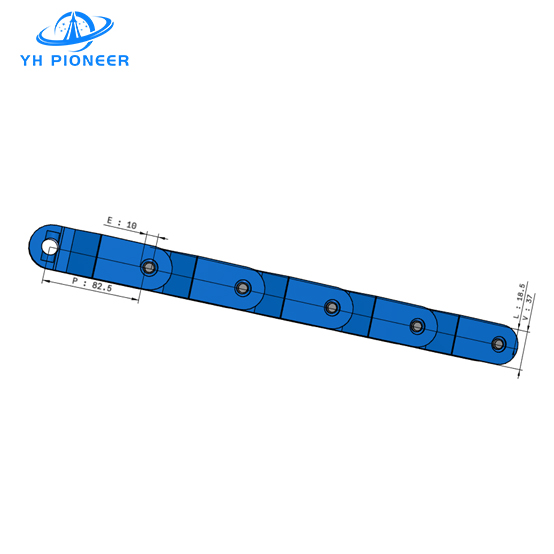

PRODUCT PARAMENT
Application | Mainly used for spiral conveyor. Use together with guide rail and sprocket, can do S shape conveying, the cover plate is disassemble, easy to install. |
Chain plate material | Polyoxymethylene (POM) blue, operating temperature -30°C~+90°C |
Cover material | Reinforced nylon (PA6+GF30%) yellow, operating temperature -40°C~+120°C |
Pin material | Ø8mm stainless steel |
Remark | Stainless steel |
Chain width | 114.3mm |
Weight | 2.60kg/m |
Working load | 4000N |
opposite bending raduis | 390mm |
Minimum sideflex raduis | 710.0mm |
*It can be modified according to customer requirements.
Please contact us for the latest specification stock and quotation
PRODUCT ADVANTAGE
*High-Strength Flexibility: The chain serves as a robust carrier for conveying loads, suitable
for both straight and curved paths.
*Compact and Agile: With a small pitch and flexible movement, it is ideal for the
transportation of light and regularly shaped industrial products.
*Adaptability and Economy: The conveyor chain offers excellent adaptability and
cost-effectiveness, ensuring smooth and efficient operation.
*Low Noise and Wear: Designed for low noise operation and minimal wear, contributing to
a longer service life.
*Easy Cleaning and Maintenance: The materials and design facilitate easy cleaning and maintenance,
meeting hygiene standards.
*High-Strength Load Capacity: Special connections and pins ensure the chain can handle high
workloads even in adverse environments.
*Small Turning Radius: Capable of tight turns with a small reverse turning radius,
suitable for applications where space is limited.
PRODUCT SPECIFICATIONS
*Product Name: Case Conveyor Chain
*Chain Plate Material: Polyoxymethylene (POM), blue, with a temperature range of -30°C to
+90°C
*Cover Plate Material: Reinforced Nylon (PA6+GF30%), yellow, with a temperature range of
-40°C to +120°C
*Pin Material: Cold-rolled austenitic stainless steel, Ø8mm
*Chain Plate Width (CW): 114.3 mm
*Weight: 2.60 kg/m
*Working Load (WL): 4000 N
*Reverse Bending Radius (LR): 390 mm
*Minimum Turning Radius (RR): 710.0 mm
PRODUCT MATERIALS
*Chain Plate: Made from POM, known for its strength and rigidity, suitable for
heavy-duty applications.
*Cover Plate: Constructed with reinforced Nylon, offering enhanced strength and
temperature resistance.
*Pin Axle: Crafted from cold-rolled austenitic stainless steel for durability
and corrosion resistance.
PRODUCT APPLICATIONS
Spiral Conveying: Ideal for applications requiring vertical or inclined movement of
items.
S-Shaped Conveying: With matching guide rails and sprockets, it can navigate S-shaped
paths with ease.
Removable Panels: The detachable panels facilitate easy installation and maintenance.
Food Industry: Particularly promoted for handling packaged food products due to
its hygienic and durable materials.
