Customizable Roller Conveyor Chain with POM and PP for Versatile Automation Solutions

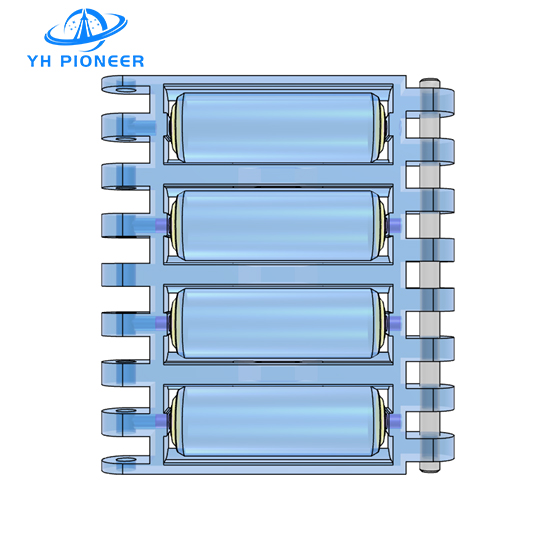

Modular Belt with Rollers
We provide professional Modular Belt with Rollers, support the conveying of various types , and provide a variety of conveying types.
The Modular Belt with Rollers is an advanced conveyor solution designed for heavy-duty applications that require robust material handling. This belt is particularly adept at transporting items such as boxes, cases, and tires, offering a smooth and efficient conveyance process in industries like packaging and automotive.
PRODUCT ADVANTAGE
* High-Strength and Wear-Resistant: The POM material provides the necessary strength and durability
for heavy loads within a wide temperature range.
* Flat Design: The flat chain plates are ideal for heavy material transport,
offering a stable and even conveying surface.
* Simple Structure and Stable Operation: The belt is designed for consistent performance and strong
load-bearing capabilities, suitable for various materials.
* High Abrasion Resistance: The POM material ensures a long service life, reducing the need
for frequent replacements and maintenance costs.
* Easy to Clean and Maintain: The belt meets hygiene standards for industries like food
processing, with easy-to-clean surfaces.
* Customizable: Can be tailored to specific application needs, such as adding side
guards or skirts as required.
PRODUCT SPECIFICATIONS
Application: Suitable for transporting box containers, tires, and as a
packaging conveyor belt.
Belt Material: Blue Polyoxymethylene (POM), with a temperature range of -30°C to
+90°C.
Roller Material: Natural Polypropylene (PP) with a hint of Light Blue Thermoplastic
Elastomer (TPE), usable within a temperature range of +1°C to
+80°C.
Pin Material: Ø5 Polybutylene Terephthalate (PBT).
Roller Pin Material: Stainless Steel 304, Ø4.
Belt Load at 25°C: 27450 N/m.
Belt Open Area: 3%.
Weight: 19.86 Kg/m².
Standard Module Width Multiplier: 1-10.
Belt Width: 104 mm.
Standard Pitch Multiplier: 1-5.
Standard Belt Width: W = 104 * N.
PRODUCT MATERIALS
*Chain Plates: Made from POM, known for its high strength and wear resistance.
*Rollers: Constructed with a combination of PP and TPE, ensuring smooth
operation and durability.
PRODUCT APPLICATIONS
*Heavy Material Transport: For the conveyance of heavy items such as glass and plastic
bottles, storage pallets, and on conveyor systems.
*Automated Production Lines: Ideal for industries like food, beverages, and pharmaceuticals,
where automation and reliability are crucial.
PRODUCT PARAMENT
Application | Mainly used in various item boxes, tire industries, and packaging conveyor belts |
Belt Raw material | Blue Polyoxymethylene (POM) |
Ball material | Natural color polyethylene (PP)+light blue (TPE),operating temperature +1°C~+80°C |
Pin material | Ø5PBT |
Material of ball pin shaft | Ø4 stainless steel 304 |
Modular belt work load (25°C) | 27450N/M |
Modular belt opening rate | 3% |
Weight | 19.86Kg/m^2 |
The multiply of standard modular belt width | 1-10 |
Modular belt width | 104mm |
The multiply of standard pitch | 1-5 |
Modular belt width | Standard Modular belt Width: W=104*N |
*It can be modified according to customer requirements.
Please contact us for the latest specification stock and quotation
