High - Friction Anti - Slip Chain Plate for Reliable Material Stability in Conveyor Systems

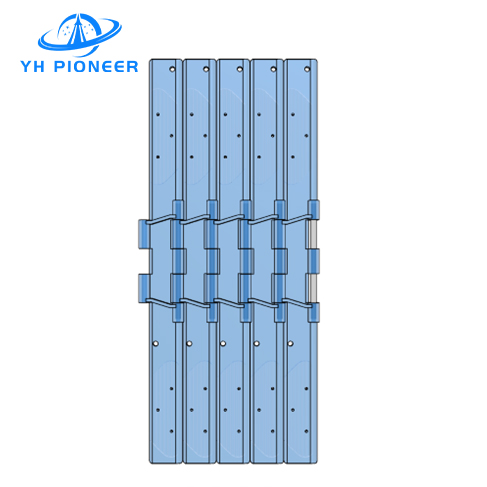

Straight Running Plastic Table Top Chain with Rubber Top
We provide professional Straight Running Plastic Table Top Chain with Rubber Top, support the conveying of various types , and provide a variety of conveying types.
The Straight Running Plastic Table Top Chain with Rubber Top is an innovative conveyor chain designed to enhance the stability of material transport. This chain plate is engineered with a special non-slip surface, making it ideal for applications where preventing the movement of materials during transit is crucial.
PRODUCT ADVANTAGE
* Non-Slip Surface: The rubber top provides increased friction to prevent materials
from slipping during conveyance.
* High Load Capacity: With a load capacity of 2680N per meter at 25°C, it is designed
for heavy-duty applications.
* Low Noise Operation: The rubber surface helps to absorb vibrations, reducing noise
during operation.
* Easy Maintenance: The plastic chain plates are easy to clean and maintain,
contributing to a hygienic and efficient conveyor system.
PRODUCT SPECIFICATIONS
* Material: Polyoxymethylene (POM) in a coffee color, with a service
temperature range of -30°C to +90°C.
* Pin Diameter: 6.3mm, made from cold-rolled austenitic stainless steel.
* Chain Plate Load at 25°C: 2680N per meter.
* Width: 457.2 mm.
* Weight: 4.25 kg per meter.

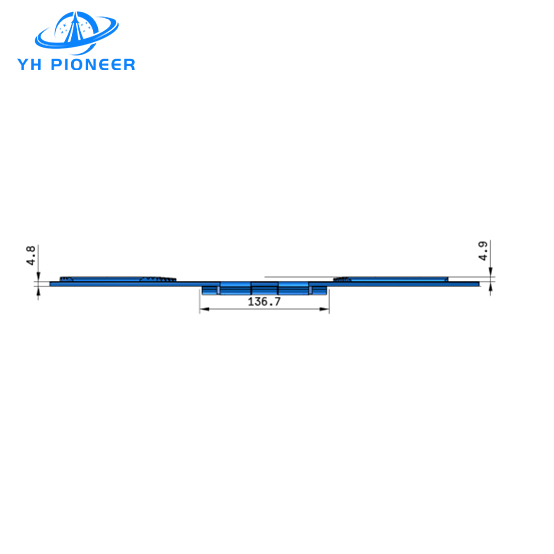

* Pitch: 136.7 mm.
* Reverse Bending Radius: 50 mm.
PRODUCT MATERIALS
* Chain Plate: Made from coffee-colored POM, offering the necessary strength and
durability for conveyor applications.
* Pin Material: Cold-rolled austenitic stainless steel ensures high corrosion
resistance and durability.
PRODUCT APPLICATIONS
* Food Processing: For gentle and hygienic transport of food products.
* Packaging: To ensure packages remain stable on the conveyor, reducing the
risk of damage.
* Pharmaceutical: In environments where cleanliness and precision in material
handling are required.
* Automated Production Lines: In any industry that requires the reliable and efficient movement
of goods.
PRODUCT PARAMENTERS
Product name | Straight Running Plastic Table Top Chain with Rubber Top |
Application | Suitable for the bottles, cans conveying in food, and beverage industry. |
Material | POM. Color:coffee,Work temp:-30°C to 90 °C |
Pin material | Φ6.3mm Stainless steel |
Chain Load (25°C) | POM is 2680N/M |
Remark | One meter = 26 pieces |
Width | 457.2mm |
Weight | 4.25 kg/m |
Q | 136.7mm |
Backflex radius | 50mm |
*It can be modified according to customer requirements.
Please contact us for the latest specification stock and quotation
