Robust 304 / 316 Stainless Steel Chain Plate with Double Hinges for
High - Load Automation
Straight Running Double Hinge Stainless Steel Chain
We provide professional Straight Running Double Hinge Stainless
Steel Chain, support the conveying of various types , and provide a
variety of conveying types.
The Straight Running Double Hinge Stainless Steel Chain is an
advanced conveyor chain designed for heavy-duty material handling.
Specifically engineered for long-distance conveying of items such
as glass bottles, it offers exceptional performance in industries
where cleanliness and durability are paramount, such as wine
production.
PRODUCT ADVANTAGE
*Corrosion Resistance: Constructed from cold-rolled austenitic stainless steel, such as
grades 304 or 316, the chain provides superior resistance to
corrosion, making it suitable for use in moist or chemical
environments.
*High Load Capacity: The double hinge design allows for the conveyance of heavy loads,
meeting the demands of robust applications.
*Flexibility: Offers greater adaptability with the ability to navigate tight
bends while maintaining structural stability and load-bearing
capacity.
*Low Maintenance: The simple structure of the chain facilitates easy cleaning and
maintenance, contributing to a low total cost of ownership.
*Durability: The stainless steel material ensures the chain's wear resistance
and extended service life.
*Food Safety: Compliant with food-grade standards, it is ideal for use in food
processing and packaging applications.
PRODUCT SPECIFICATIONS

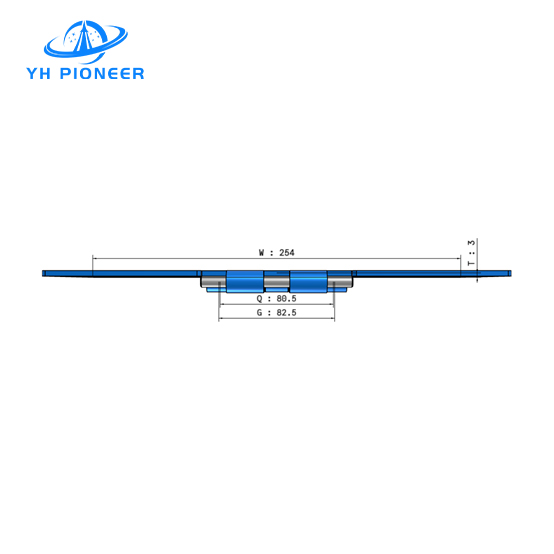

*Width: 254.0 mm
*Weight per Meter: 7.73 kg
*Working Load: 3500N, with a maximum recommended length of 15 meters for optimal
performance.
*Maximum Speed: 50 meters per minute with lubrication, and 30 meters per minute
dry.
*Opposite Bending Radius: 150 mm.
PRODUCT MATERIALS
Chain Material: Made from stainless steel, which is renowned for its cleanliness
and corrosion-resistant properties, making it suitable for
sensitive industries such as food and beverages, pharmaceuticals,
and more.
PRODUCT APPLICATIONS
*Glass Bottle Conveying: Particularly effective in handling glass bottles over long
distances without damage.
*Wine Industry: Its gentle yet robust handling makes it an excellent choice for
the wine bottling process.
*Heavy-Duty Material Handling: Ideal for the transportation of heavy loads in logistics and
manufacturing settings.
*Automated Production Lines: Enhances the efficiency of production lines with its high-speed
capabilities and reliable performance.
PRODUCT PARAMENTERS
Product name | Straight Running Double Hinge Stainless Steel Chain |
Application | Mainly suitable for various kinds of glass bottles, and long distance heavy duty conveying. Especially for wines conveying. |
Material | stainless steel |
Working load | Working load 3500N,Max.length 15m |
Maximum speed | 50M/min lubrication, 30M/min dry |
Remark | Drive Sprocket is same to 821 Series. |
Width | |
Weight | |
Opposite bending raduis | 150mm |
*It can be modified according to customer requirements.
Please contact us for the latest specification stock and quotation
