Robust POM Rubber - Clad Chain Plate for Silent and Smooth Industrial Conveying
Single hinge Chain with top rubber
We provide professional Single hinge Chain with top rubber, support the conveying of various types , and provide a variety of conveying types.
The Single Hinge Chain with top rubber is a versatile conveyor chain designed for the transportation of a wide array of items, including cardboard boxes, plastic crates, and various other materials. This chain combines the strength of metal with the gentle touch of rubber, making it suitable for applications that require both durability and product protection.
PRODUCT ADVANTAGE
*High-Performance Material: The chain features a top layer of rubber on coffee-colored
Polyoxymethylene (POM), providing a combination of strength and
flexibility.
*Customizable Parameters: The chain plate material composition and dimensions can be
tailored to meet specific application requirements.
*Temperature Resistance: Suitable for operating temperatures ranging from -30°C to 90°C,
ensuring reliable performance in various environments.

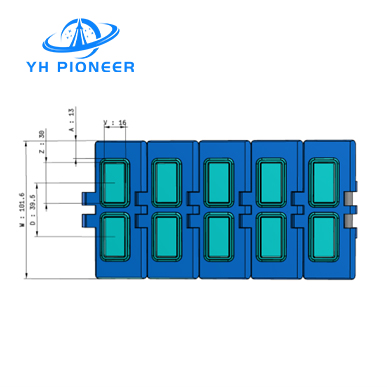

PRODUCT SPECIFICATIONS
*Product Name: Single Hinge Chain with top rubber
*Chain Plate Width: 101.6 mm
*Pitch: 39.5 mm
*Offset Distance: 13.0 mm
*Working Load: 1230.0 N
*Weight per Meter: 1.09 Kg/m
PRODUCT MATERIALS
*Chain Plate Material: POM+TPE, offering a balance of rigidity and elasticity for gentle
handling of conveyed items.
*Pin Material: Cold-rolled austenitic stainless steel, ensuring high corrosion
resistance and durability.
PRODUCT APPLICATIONS
This chain is primarily suitable for the conveyance of items such as cardboard boxes and plastic crates in industries such as logistics, warehousing, and manufacturing, where the gentle handling of products is as important as the chain's durability.
PRODUCT PARAMENTERS
Application | Main purpose: the transportation of cartons, cans, etc., and the transportation of various items |
Material | POM. Brown temp:-30°C to 90 °C |
Pin material | Stainless steel |
Chain plate width | |
spacing | |
relative position | |
Working load | 1230.0N |
Weight | |
Chain plate material | POM+TPE |
*It can be modified according to customer requirements.
Please contact us for the latest specification stock and quotation
