Robust Sideflex Small Radius Chain with Precise Bending for
Customized Automation Solutions
Sideflex Small Radius Chain
We provide professional Sideflex Small Radius Chain, support the
conveying of various types , and provide a variety of conveying
types.

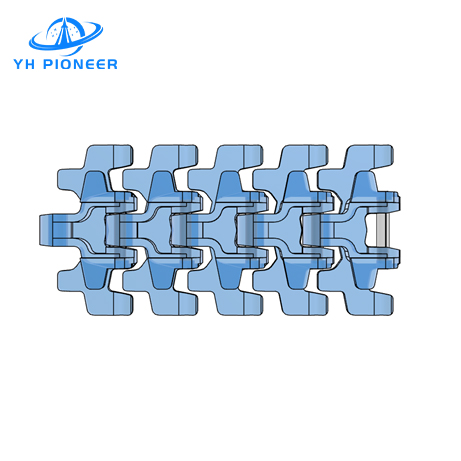

The Sideflex Small Radius Chain is a specialized conveyor chain
designed for applications requiring tight turns and 360-degree
rotations in light-load conveyor systems. This innovative chain
offers a unique combination of flexibility and strength, making it
ideal for use in various industries where space is at a premium and
complex conveying routes are necessary.
PRODUCT ADVANTAGE
* High-Speed Operation: Capable of operating at speeds up to 50 meters per minute with
lubrication and 30 meters per minute in dry conditions, ensuring
efficiency in high-throughput environments.
* Light-Load Conveying: Designed for light-load applications, making it suitable for
handling items that do not require heavy-duty transportation.
* Tight Turning Capability: With a small opposite bending radius of 50 mm and a sideflex
radius of 150 mm, the chain can navigate tight corners and perform
360-degree rotations with ease.
PRODUCT SPECIFICATIONS

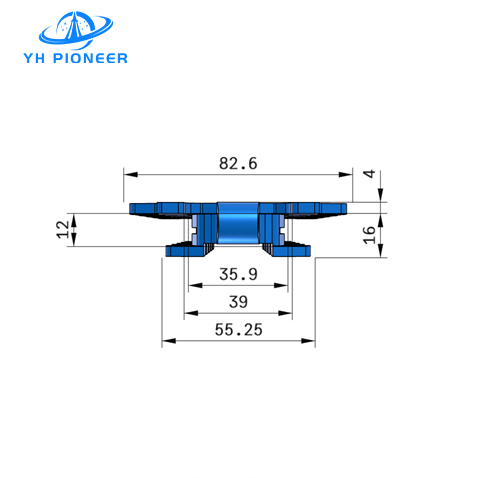

* Width: 82.6 mm
* Weight per Meter: 0.86 kg/m

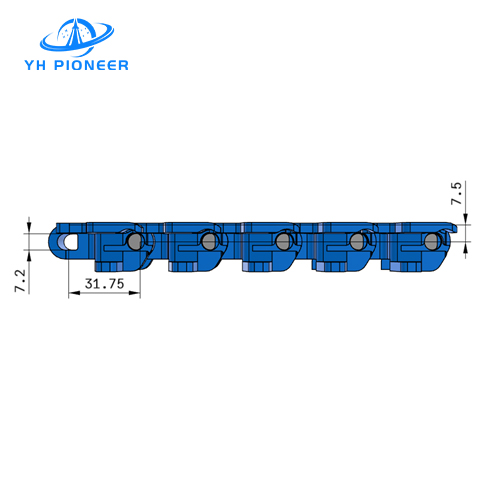

* Pitch: Standard for the series (to be confirmed)
* Pin Diameter: Standard for the series (to be confirmed)
* Opposite Bending Radius: 50 mm
* Sideflex Radius: 150 mm
PRODUCT MATERIALS
* Plate Material: Polyoxymethylene (POM) in green color, offering high strength and
wear resistance with an operating temperature range of -30°C to
+90°C.
* Pin Material: Stainless steel, providing excellent corrosion resistance and
durability.
PRODUCT APPLICATIONS
This chain is primarily suitable for light-load and 360-degree
rotating conveyor belts, making it an excellent choice for
applications in the food, pharmaceutical, and consumer goods
industries, among others, where products need to be transported
around corners or in circular patterns.
PRODUCT PARAMENTERS
Product name | Sideflex Small Radius Chain |
Application | It is mainly suitable for various light-load and 360-degree rotating conveyor belts. |
Material | POM, color green, operating temperature -30°C~+90°C |
Pin material | Stainless steel |
Maximum speed | 50M/min lubrication, 30M/min dry |
Working load | 2100N(25°C),Max.length 12m |
Remark | One meter = 32 pieces |
Width | 82.6mm |
Weight | 0.86 kg/m |
opposite bending raduis | 50mm |
Sideflex radius | 150mm |
*It can be modified according to customer requirements.
Please contact us for the latest specification stock and quotation
