We provide professional Single Hinge Chain, support the conveying of various types , and provide a variety of conveying types.

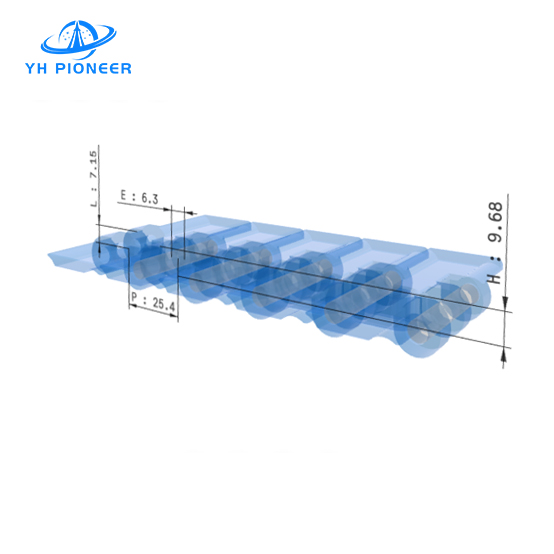

The Single Hinge Chain is a specialized chain designed for straightforward linear conveying applications across various industries. Known for its simplicity and ease of maintenance, it is an ideal solution for the transportation of a wide range of containers and products.
​Key Specifications

* Sanitary Design: Typically made from stainless steel to meet the hygiene and corrosion resistance requirements of sensitive industries like food and beverages, pharmaceuticals, and cosmetics. Options include 300 series stainless steel, with 400 series available upon customer request.
* Straight-Line Conveying: The chain's design is optimized for linear transportation, ensuring efficient and direct product flow.
* Enhanced Friction or Cushioning: Some chain plates feature rubber strips on the top to provide additional grip or cushioning, suitable for the conveyance of specific materials.
* Versatile for Container Handling: Suitable for conveying a variety of containers, including food products, beverages, PET bottles, and aluminum cans.
* High Load Capacity: Capable of withstanding substantial working loads, such as a 1230N load at 21°C.
* High-Speed Operation: Designed for high-speed conveyance, with speeds reaching up to 80 meters per minute, and even higher under lubricated conditions.
* Material and Temperature Resistance: The chain plates are made from POM (Polyoxymethylene), usually in a coffee color, with a wide applicable temperature range from -40℃ to +90℃.

PRODUCT FEATURES

Our Single Hinge Chains are available in different specifications to meet the diverse needs of industries such as food and beverage, pharmaceuticals, and cosmetics. They are tailored to handle various load capacities and speeds, ensuring compatibility with both high-volume and high-speed production lines.
