Cost - Effective Modular Belt with Universal Roller for Flexible Automation and Sorting Applications
Modular Belt with Universal Roller
We provide professional Modular Belt with Universal Roller, support the conveying of various types , and provide a variety of conveying types.
The Modular Belt with Universal Roller is an innovative conveyor belt system designed for flexible and adaptive material handling. This belt features a unique top universal ball design, making it ideal for applications such as sorting and diverting in packaging and conveyor systems.
PRODUCT ADVANTAGE
* Modular Design: Easy to install and maintain, with the ability to quickly replace
or upgrade components as needed.
* Universal Rollers: Provide multi-directional rotation, allowing the belt to move
items flexibly in various directions.
* Durable Construction: Made from robust materials such as plastic or metal to accommodate
different loads and environmental conditions.
* High Adaptability: Capable of achieving complex conveyor paths within limited spaces,
including turns and elevations.
* Easy Maintenance: The modular design allows for quick replacement of damaged parts.
* Reduced Friction: The roller design minimizes energy consumption and reduces the
risk of product damage during conveyance.
* Customizability: Can be tailored to meet different material characteristics and
production line requirements by customizing roller types and belt
widths.
PRODUCT SPECIFICATIONS
* Application: Suitable for sorting and diverting in packaging conveyor systems.
* Belt Material: Polyoxymethylene (POM), with a temperature range of -30°C to
+90°C.
* Pin Material: Polypropylene (PP).
* Roller Material: POM/Stainless Steel 304.
* Belt Load: 16000N per meter for POM.
* Belt/Roller Color: Coffee color/White.
* Weight: 9.2kg/m² for POM belt, 20kg/m² for stainless steel 304 rollers.
* Standard Module Width Multiplier: 1.
* Belt Width: 76.2 mm.
* Standard Pitch Multiplier: 1.
* Standard Belt Width (MBT): W = 76.2 mm times the number of standard modules (N).
PRODUCT MATERIALS
* Belt: Constructed from POM, known for its strength and rigidity within a
wide temperature range.
* Rollers: Made from POM or stainless steel 304, offering a choice between
cost-effectiveness and high durability.
PRODUCT APPLICATIONS
* Automated Production Lines: For the conveyance of items that require multi-directional
movement or sorting.
* Logistics and Sorting Centers: Where items need to be diverted or sorted in various directions.
PRODUCT PARAMENT
Application | The unique design of the universal roller on the modular belt is satisfied to sorting and dividing conveyor. |
Belt Raw material | Polyoxymethylene (POM), operating temperature -30°C~+90°C |
Pin material | Polypropylene(PP) |
Roller material | Sus304 stainless steel or POM |
Modular belt work load | POM is 16000N/M |
Modular belt/rolller color | Blue+white |
Weight | Weight with POM roller: 9.2kg/m^2,Weight with sus304 stainless steel roller:20kg/m^2 |
| The multiply of standard modular belt width | 1-10 |

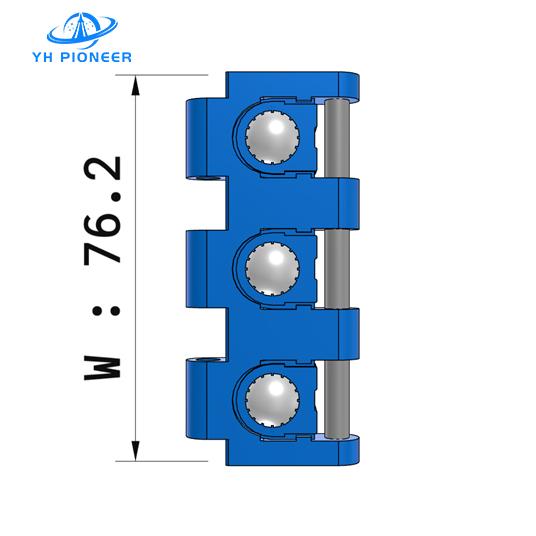

| Modular belt width | 76.2mm |
| The multiply of standard pitch | 1-5 |
| Modular belt width | Standard Modular belt Width: W=76.2*N |
*It can be modified according to customer requirements.
Please contact us for the latest specification stock and quotation
