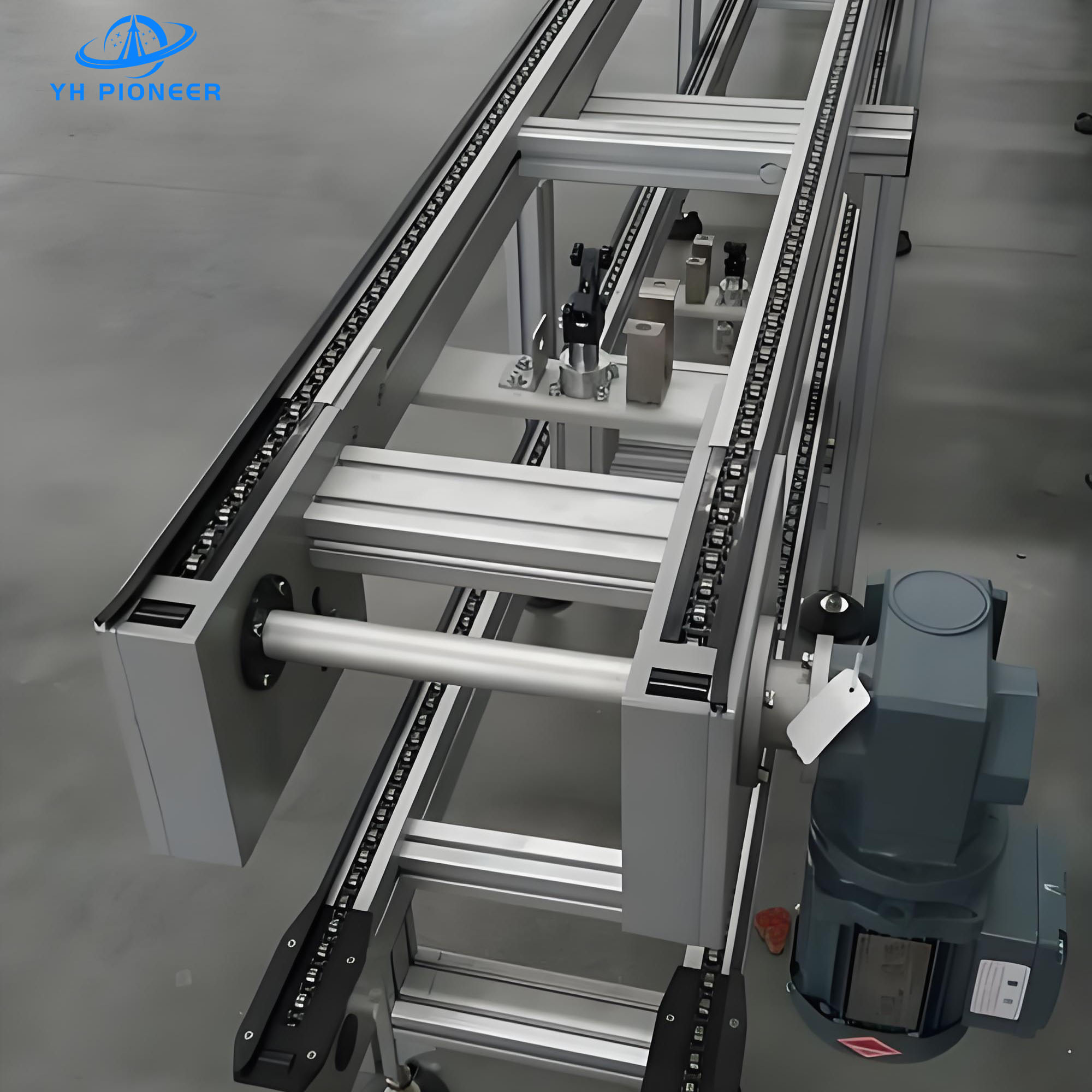

Flexible and Durable Double Speed Chain Conveyor with Modular Aluminum Profile for Customizable Industrial Applications
Double Speed Chain Conveyor
We provide professional Double Speed Chain Conveyor that can accurately and efficiently stack and arrange goods, significantly improving the operational efficiency of warehousing and logistics.
The Double Speed Chain Conveyor is a high-performance material handling system that integrates a dual-speed mechanism within a roller chain framework. This advanced conveyor is designed to maintain a constant chain speed while independently controlling the speed of the tools and workpieces placed upon it. This capability allows operators to manage the movement of items precisely, enabling them to stop for assembly operations and then proceed once the task is completed, making it an ideal solution for complex assembly lines and production processes.
PRODUCT PARAMENTERS
Conveyor drive unit | Modular dual drive &idler unit,Easy installation | |
conveyor beam | modular Aluminum profile or carbon steel | |
Nylon Chain | pitch=38.1,12.7.25.4 | |
conveyor speed | 0~30M/minute adjustable | |
motor | customize 0.3KW,0.37KW,0.5KW,1.5KW,2KW,3KW... | |
conveyor length | 600mm-25000mm customized | |
Max loading | 1.5KG/CM | |
*It can be modified according to customer requirements.
Please click the form below to download and fill it out to inquire
about detailed specifications and parameter options.
TECHNOLOGICAL ADVANTAGE
Dual-Speed Capability: Offers independent control over the speed of the chain and the
items it carries, enhancing operational flexibility.
Customizable Dimensions: The length and power can be tailored to the specific needs of the
application, providing a bespoke solution.
Adjustable Speed: The variable speed control allows for fine-tuning the conveyor's
operation to match production requirements.
Durable Construction: The use of aluminum, carbon steel, and nylon ensures the conveyor
is both strong and resistant to wear.
PRODUCT SPECIFICATIONS
Conveyor Drive Unit: Equipped with a modular dual drive & idler unit for easy
installation.
Conveyor Beam: Constructed with modular aluminum profiles or carbon steel for
robust support.
Chain Type: Utilizes a nylon chain with various pitches to suit different load
and speed requirements.
Conveyor Speed: Adjustable from 0 to 30 meters per minute, allowing for precise
control over operation tempo.
Motor: Customizable motor options ranging from 0.3KW to 3KW to match the
power needs of various applications.
Conveyor Length: Customizable from 600mm to 25000mm to fit specific workspace
dimensions.
Maximum Loading: Designed to handle a load of 1.5KG per centimeter, ensuring it can
manage substantial weights.
PRODUCT MATERIALS
Chain: Made from nylon with a specific pitch (38.1, 12.7, 25.4mm) to
accommodate various loads and speeds.
Beam: Crafted from either aluminum for lightweight strength or carbon
steel for heavy-duty applications.
Motor: A range of motor powers are available, from 0.3KW for lighter
loads to 3KW for more demanding applications.
PRODUCT APPLICATION
Industrial Manufacturing: Ideal for assembly lines where precision control over the movement
of parts is necessary.
Packaging: Can be used in packaging processes where items need to be paused
for labeling, sealing, or quality checks.
Automotive: Useful in automotive production for the assembly of components
where timing is crucial.
Food and Beverage: Suitable for environments where cleanliness and precision are
required, such as in food processing plants.
SERVIC and SUPPORT
We provide comprehensive maintenance services to ensure the Double
Speed Chain Conveyor remains in optimal condition. Our dedicated
support team is available to assist with any technical queries or
service needs.
