Efficiency Servo Carton Opening Machine for 10-12 Cartons/Min with Auto Size Adjustment and 450Kg Durability

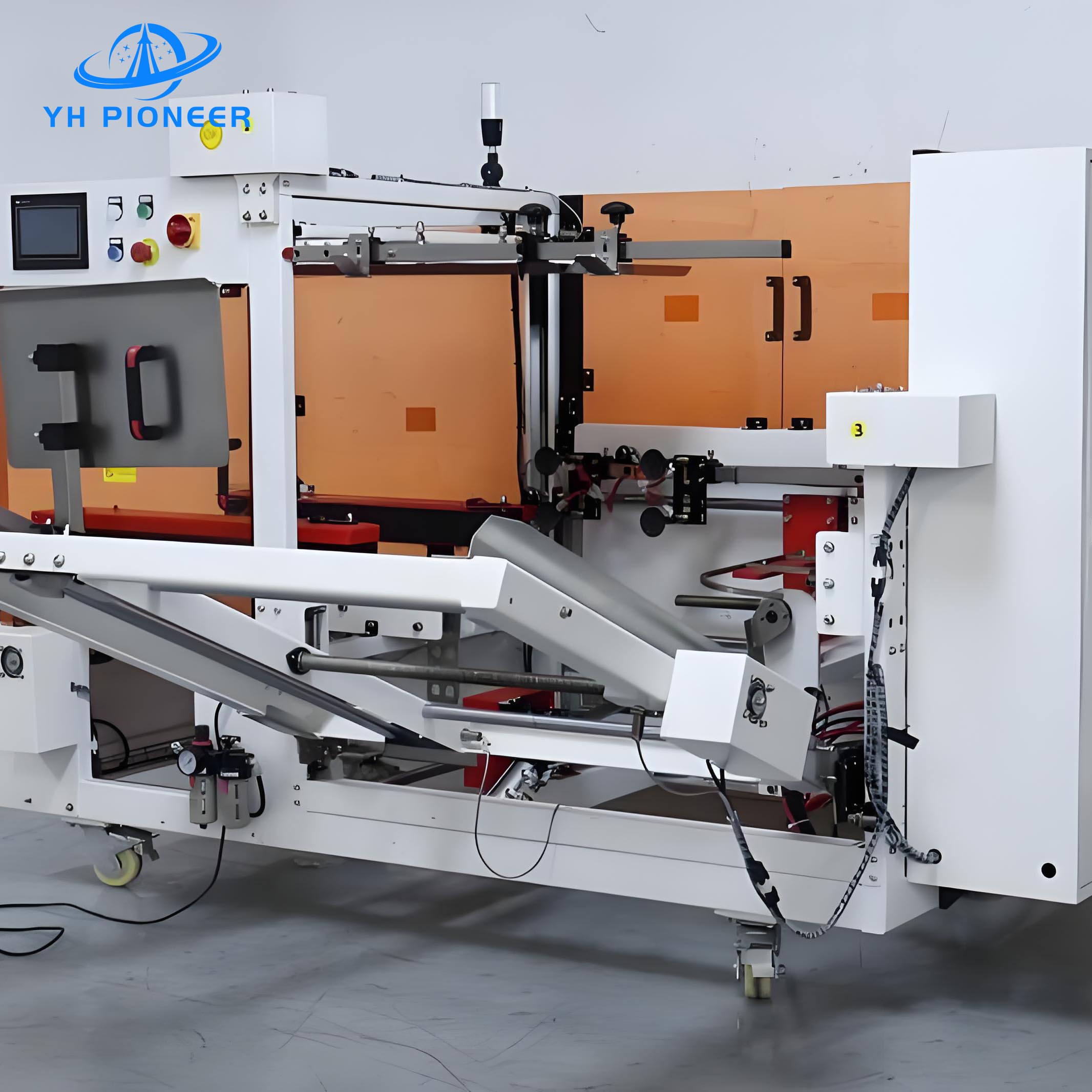

Carton Opening Machine
We provide professional Carton Opening Machine that can accurately and efficiently stack and arrange goods, significantly improving the operational efficiency of warehousing and logistics.
The Carton Opening Machine is an automated equipment designed to perform the task of opening cartons with high efficiency and precision. This machine is ideal for industries that require rapid and voluminous box opening operations, such as food, pharmaceutical, beverage, tobacco, and electronics manufacturing. Equipped with a servo control system, it ensures smooth and stable operation, reducing the need for manual labor and enhancing production line efficiency.
PRODUCT PARAMENTERS
Model | Parameters |
Carton Opening Speed | 10-12 cartons/min |
Carton Size Range | L270-450×W150-400×H100-400mm(Min and Max cannot exist at the same
time) |
Power Supply | 220V 50/60Hz 1 Phase |
Power | 240W |
Adhesive Tape Width | 48/60/75mm |
Carton Storage Quantity | 80-100pcs (800-1000mm) |
Air Consumption | 450NL/min |
Air Compressing | 6kg/cm³ |
Discharge table height | 600+30 mm |
Machine Size | L2100×W2100×H1450mm |
Machine Weight | 450Kg |
*It can be modified according to customer requirements.
Please click the form below to download and fill it out to inquire
about detailed specifications and parameter options.
TECHNOLOGICAL ADVANTAGE
High Efficiency: With a servo control system, the machine achieves high carton
opening speeds, up to 12 boxes per minute.
Adjustability: Features one-touch size adjustment for different carton
dimensions, enabling automated operation.
Durable Construction: Equipped with a wear-resistant conveyor belt for steady and
reliable material transport.
User-friendly Interface: A touch screen panel allows for easy size adjustments by inputting
carton specifications.
Memory Function: Stores up to 100 carton profiles for quick retrieval and automatic
size adjustment, reducing manual labor and carton loss.
Safety Features: Includes a tape break alarm and an automatic stop function for
enhanced operational safety.
Precision and Reliability: The servo control ensures high precision and reliability, offering
a more stable operation compared to pneumatic drives.
PRODUCT SPECIFICATIONS
Model: Customized based on specific requirements.
Carton Opening Speed: Capable of processing 10-12 cartons per minute.
Carton Size Range: Adjustable to fit lengths from 270mm to 450mm, widths from 150mm
to 400mm, and heights from 100mm to 400mm.
Power Supply: Requires a 220V 50/60Hz single-phase supply.
Power Consumption: 240W for operation.
Adhesive Tape Width Compatibility: Compatible with widths of 48mm, 60mm, and 75mm.
Carton Storage Capacity: Holds 80-100pcs with carton sizes ranging from 800mm to 1000mm.
Air Consumption: 450NL/min for optimal operation.
Air Compression Requirement: Operates at 6kg/cm³.
Discharge Table Height: Adjustable with a standard height of 600mm plus an additional
30mm.
Machine Dimensions: L2100mm x W2100mm x H1450mm.
Machine Weight: 450Kg for stability during operation.
PRODUCT MATERIALS
Machine Frame: Constructed with durable components and materials suitable for
industrial environments.
Conveyor Belt: Made from robust and wear-resistant materials for consistent
performance.
Electrical and Pneumatic Components: High-quality components for dependable operation.
PRODUCT APPLICATION
Food Industry: Suitable for rapid carton opening in food packaging processes.
Pharmaceutical Sector: Ensures efficient and clean box opening for pharmaceutical
products.
Beverage Industry: Designed for high-speed carton opening in beverage manufacturing.
Tobacco and Daily Chemicals: Ideal for industries where cleanliness and precision in packaging
are crucial.
Electronics: Useful for quick unpacking of components in electronic assembly
lines.
SERVIC and SUPPORT
We provide comprehensive maintenance services to ensure the Carton Opening Machine remains in optimal condition. Our dedicated support team is available to assist with any technical queries or service needs.
