High - Speed Box Case Packing Machine with 30-120 Boxes per Minute
Capacity and POM Material

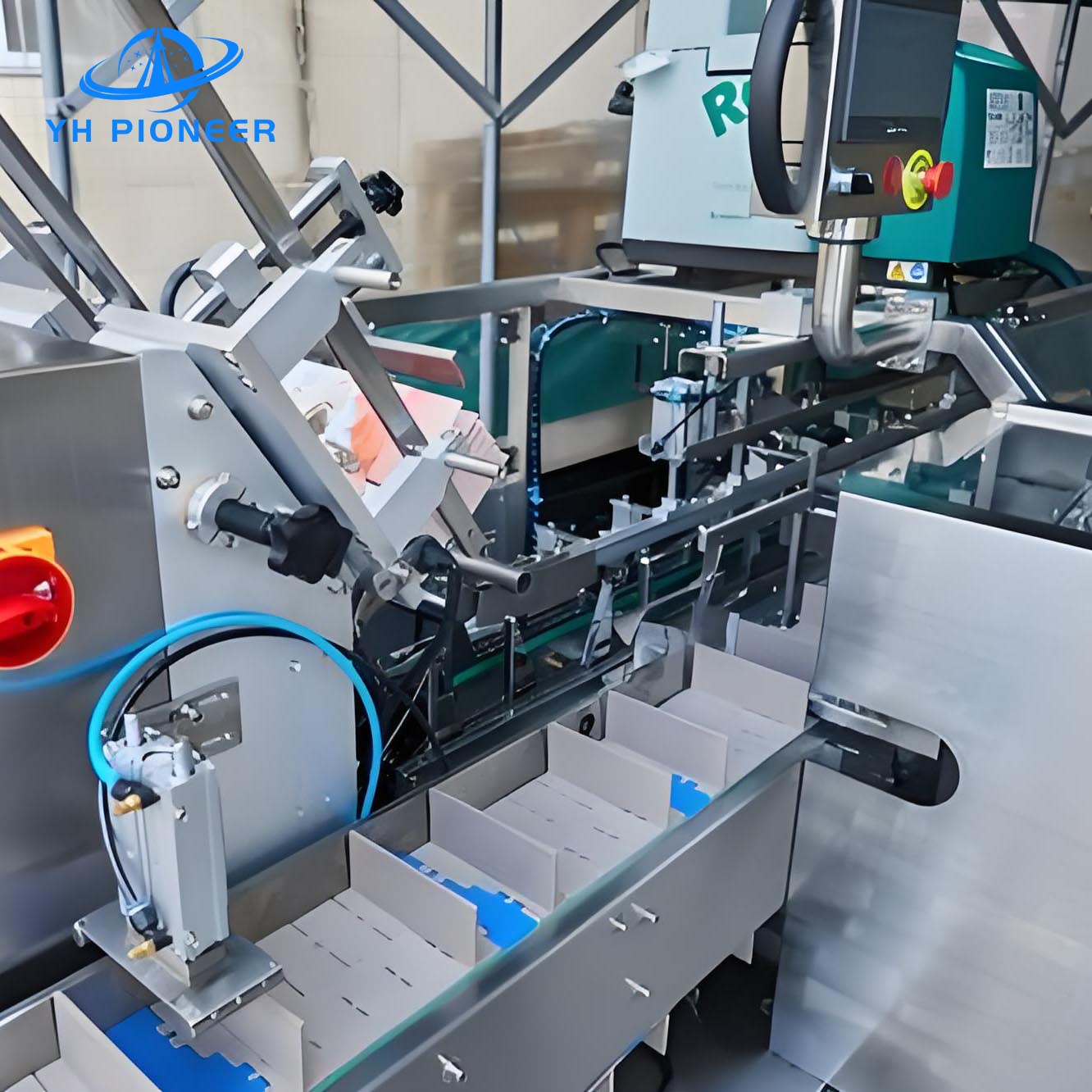

Automatic Box Packaging Machine
We provide professional The Automatic Box Packaging Machine that can accurately and efficiently stack and arrange goods, significantly improving the operational efficiency of warehousing and logistics.
The Automatic Box Packaging Machine is an innovative automation solution designed to streamline the process of placing products into cartons or plastic boxes, and completing the sealing and packaging tasks with precision. This high-speed equipment integrates advanced positioning systems and seamless motion control to significantly enhance production efficiency and ensure accurate product placement within the packaging.
PRODUCT PARAMENTERS
Cartoning speed | 30-120 box/min |
Carton Quality requirements | 250-350g/㎡ (depend on the size of the carton) |
Carton Dimension range (L×W×H) | (100-185) mm× (30-70) mm× (25-45) mm |
Leaflet Quality requirements | 60-70 g/㎡ |
Leaflet Unfolded size range (L×W) | (80-250)㎜×(90-170)㎜ |
Leaflet Folding range (L×W) | 1-4 (Fold) |
Compressed air | 120-160L/min ≥0.6mpa |
Power supply | 380V 50HZ |
Main motor power | 1.5kw |
Dimension (L×W×H) | 3100mm×1100mm×1550mm |
Machine net weight | About 1400kg |
*It can be modified according to customer requirements.
Please click the form below to download and fill it out to inquire
about detailed specifications and parameter options.
TECHNOLOGICAL ADVANTAGE
Automation: Fully automatic completion of product filling, sealing, and boxing
operations, significantly improving production efficiency.
Advanced Positioning System: Ensures the precise placement of products during the packaging
process for consistent quality.
Design: Incorporates a conveyor belt, box loading mechanism, sealing unit,
and control system for fully automated operations.
Efficiency: Enhances production efficiency, reduces labor costs, and minimizes
error rates.
Adaptability: Intelligent design allows for flexible production line layouts to
accommodate various product sizes and shapes.
Quality Assurance: Equipped with automatic detection and troubleshooting functions to
ensure stable and consistent packaging quality.
PRODUCT SPECIFICATIONS
Cartoning Speed: Capable of processing 30-120 boxes per minute for high-volume
packaging requirements.
Carton Quality: Suitable for cartons with a weight range of 250-350g/㎡, depending
on the carton size.
Carton Dimension Range: Adjustable to accommodate cartons measuring
(100-185) mm in length, (30-70) mm in width, and (25-45) mm in
height.
Leaflet Quality: Compatible with leaflets weighing 60-70 g/㎡.
Leaflet Unfolded Size Range: Designed to handle leaflets with an unfolded size range of
(80-250) mm in length and (90-170) mm in width.
Leaflet Folding Range: Capable of managing 1-4 fold leaflets.
Compressed Air: Requires 120-160L/min at a pressure of ≥0.6mpa for pneumatic
functions.
Power Supply: Operates on a 380V 50HZ supply for stable performance.
Main Motor Power: Equipped with a 1.5kw main motor for robust operation.
Machine Dimension: With dimensions of 3100mm in length, 1100mm in width, and 1550mm
in height, it is compact yet spacious enough for efficient
operation.
Machine Net Weight: Weighs approximately 1400kg for stability during operation.
PRODUCT MATERIALS
Conveyor Belt: Constructed from POM to withstand continuous operation while
minimizing product damage.
Box Loading and Sealing Mechanisms: Made with high-precision components to ensure reliable and
accurate operation.
Control System: Utilizes state-of-the-art electronics for seamless machine control
and monitoring.
PRODUCT APPLICATION
*The Automatic Box Packaging Machine is extensively used in
industries such as pharmaceuticals, cosmetics, and food for the
automatic packaging of a wide range of products.
*In the pharmaceutical sector, it rapidly packages medications into
boxes, ensuring safety and hygiene with sealing and boxing
operations.
*The cosmetics and food industries also leverage the machine for
fast and accurate product filling and sealing, boosting production
efficiency and product quality.
SERVIC and SUPPORT
We provide comprehensive maintenance services to ensure the
Automatic Box Packaging Machine remains in optimal condition. Our
dedicated support team is available to assist with any technical
queries or service needs.
