High-Capacity Sideflex Roller Table Top Chain in Dark Green POM for Robust Side Bending
Sideflex Roller Table Top Chain
We provide professional Sideflex Roller Table Top Chain, support the conveying of various types , and provide a variety of conveying types.
The Sideflex Roller Table Top Chain is a sophisticated conveyor chain system designed for applications that require lateral bending and turning in material handling, particularly effective in the conveyance of items packaged with heat shrink film. This robust chain is tailored for industries where complex routing and high efficiency are paramount.
PRODUCT ADVANTAGE
*Lateral Bending Design: Specifically crafted for high-speed straight and extended
conveyance lines, adept at navigating lateral bends and turns as
required.
*High Load Capacity: Built to handle heavy loads with a working load capacity of 3200N
over a considerable length of 12 meters.
*Durable Construction: Constructed with POM for the chain plates and rollers, ensuring
strength and flexibility, while the stainless steel pins offer
superior corrosion resistance.
*Flexible Turning Capabilities: Designed to achieve various turning angles, ensuring the smooth
flow of materials and adaptability to different system layouts.
*Smooth and Quiet Operation: The POM material for the rollers minimizes noise and friction,
improving overall conveyor system efficiency.
*Low Maintenance: The chain's design facilitates straightforward maintenance and
part replacement, reducing downtime and maintenance costs.
PRODUCT SPECIFICATIONS
*Product Name: Sideflex Roller Table Top Chain
*Material: Polyoxymethylene (POM) for the chain plate and rollers, dark
green, suitable for temperatures ranging from -30°C to 90°C
*Pin Material: Cold-rolled austenitic stainless steel
*Working Load: Capable of withstanding a substantial load of 3200N with a maximum
conveying length of 12 meters
*Consistent with Sprocket Series: Compatible with 882-TAB series sprockets
*Packaging: Supplied in lengths of 26 pieces per meter for ease of handling
and installation
*Width: 190.5 mm
*Roller Width: 174.0 mm
*Weight: 5.10 Kg/m
*Reverse Bending Radius: 101 mm
*Turning Radius: 610 mm
PRODUCT MATERIALS
*Chain Plate and Rollers: Manufactured from POM, providing a combination of rigidity and
flexibility with a wide operational temperature range.
*Axles: Made from cold-rolled austenitic stainless steel for enhanced
durability and reliability.
PRODUCT APPLICATIONS
*Food and Beverage Industry: It's ideal for conveying a wide range of food products and beverages, especially in environments that require frequent turns and bends in the production line, such as in filling and packaging processes.
*Pharmaceutical Packaging: The chain's ability to handle lateral bends makes it suitable for automated pharmaceutical packaging lines where product integrity and route flexibility are crucial.
*Automated Warehousing Systems: Utilized in automated storage and retrieval systems for the efficient sorting and dispatching of goods, navigating through complex warehouse layouts.
*Chemical and Cosmetic Industries: Capable of handling the specific demands of these industries, including the conveyance of sensitive or heavy materials that require careful handling around corners.
*E-commerce and Logistics: Employed in logistics centers for the sorting of packages and parcels, where high-speed sorting and minimal product damage are essential.
*Industrial Automation: Used in various industrial applications for the assembly and transportation of components, particularly where products need to be moved around tight corners or in confined spaces.
*Custom Machinery Solutions: Integrated into specialized machinery and equipment that require customized motion control for material handling, such as in automated assembly lines or robotic systems.

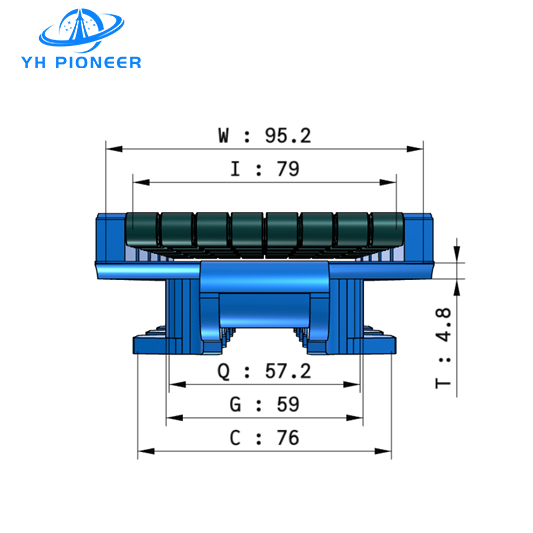

PRODUCT PARAMENTERS
Product name | Sideflex Roller Table Top Chain |
Application | it is suitable for heat-shrink packaging products sideflex conveying. |
Material | POM, color: Dark Green,Work temp: -30°C~90°C. |
Pin material | Stainless steel |
Modular belt work load | 3200N; the maximum conveying length is 12M |
Remark | Sprocket is same to 882-TAB series |
Package | 26pcs/Meter as one package |
Width | |
Roller width | |
Weight | |
opposite bending raduis | 101mm |
Sideflex Rabius | 610mm |
*It can be modified according to customer requirements.
Please contact us for the latest specification stock and quotation
