Flexible Buckle Chain Conveyor with TPE Surface for Customizable Sidewall Bending
Buckle Chain Turning Conveyor Plate Surface TPE
We provide professional Buckle Chain Turning Conveyor Plate Surface TPE, support the conveying of various types , and provide a variety of conveying types.
The Buckle Chain Turning Conveyor Plate Surface TPE is an advanced conveyor solution designed for applications requiring high flexibility and durability. This chain plate is engineered to provide a seamless transition through turns and curves in material handling systems, particularly in the catering industry.
PRODUCT ADVANTAGE
*Enhanced Friction: The TPE surface adds friction, suitable for various conveying
needs without slipping.
*Secure Buckle Design: Effectively holds materials in place, preventing displacement or
droppage during transit.
*High Flexibility: Adapts to different angles of turning, ensuring smooth material
flow.
*Durability: Features high wear and corrosion resistance, ensuring stable
operation in harsh environments.
*High Load Capacity: Equipped with a standard 12A roller chain, suitable for conveyors
with high tensile strength requirements.
*Convenient Length: Each chain is 1.524 meters long, facilitating easy installation
and use.
*Smooth Operation: Ensures a quiet, energy-efficient, and reliable performance with
low maintenance needs.
*Wide Application Range: Extensively used for the transportation of products such as food,
beverages, cans, bottles, and pallets.

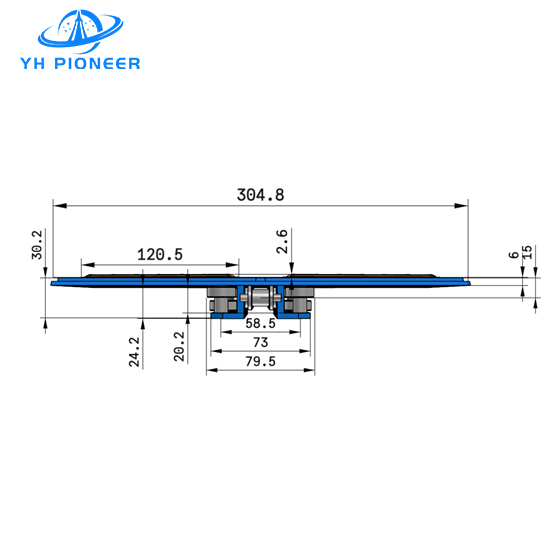

PRODUCT SPECIFICATIONS
*Product Name: Buckle Chain Turning Conveyor Plate Surface TPE
*Base Chain Material: Carbon Steel or Stainless Steel 304
*Belt Width: 304.8 mm
*TPE Spacing: 38.1 mm (multiplied by 2)
*Weight per Meter: 4.10 kg
*Reverse Bending Radius: 150 mm
*Turning Radius: 500 mm
*Maximum Speed: 50 meters per minute with lubricant, 30 meters per minute with dry
conditions
*Working Load (25°C): 3200 N for carbon steel, 1600 N for stainless steel
*Maximum Conveying Length: 30 meters for carbon steel, 24 meters for stainless steel
*TPE Surface Hardness: 65±5
*Standard Roller Chain Type: 12A
*Packaging: Each piece is 1.524 meters long
PRODUCT MATERIALS
*Plate Material: Blue Polyoxymethylene (POM) with an orange TPE surface, suitable
for temperatures ranging from -30°C to +80°C.
*Base Chain: 12A roller chain made from carbon steel or stainless steel 304,
offering robust support and resistance to corrosive environments.
PRODUCT APPLICATIONS
*Beverage Handling: Ideal for the movement of bottled and canned beverages through turns and corners without spillage.
*Automated Packaging Lines: Utilized in packaging processes that require precise control and orientation of products as they move through the packaging sequence.
*Pharmaceutical Production: Suited for the controlled movement of pharmaceutical products, ensuring cleanliness and adherence to strict industry standards.
*Cosmetics Industry: Effective for the gentle and reliable transport of cosmetic products, including fragile items that require careful handling.
*General Warehousing and Logistics: Employed in logistics for the sorting and distribution of goods, particularly where items need to be moved around corners or in tight spaces.
*Automotive and Assembly Lines: Used in manufacturing for the assembly of components, where precision and synchrony in the movement of parts are essential.
PRODUCT PARAMENTERS
Bottom chain material | |
Product name | TPE on the surface of the buckle chain type turning conveyor plate |
Application | It is mainly suitable for application on curve conveyors in the catering industry. |
Material | Blue polyethylene (POM), orange TPE surface, service temperature -30°C~+80°C. |
Bottom chain | 12A roller chain, material is divided into: carbon steel / stainless steel304 |
Top speed | 50m/min, lubrication 30m/min dry |
Working load | Carbon steel working load(25°C) : 3200N, stainless steel working load(25°C) : 1600N |
Maximum conveying total length | 30M for carbon steel and 24M for stainless steel |
TPE surface hardness | 65±5 |
Package | Each length is 1.524M |
Width | 304.8mm |
| TPE pitch : 38.1*K | 1-4 |
| Weight | 4.10kg/m |
| Reverse bend radius | 150kg/m |
| Side bend radius | 500mm |
*It can be modified according to customer requirements.
Please contact us for the latest specification stock and quotation
