High - Stability Flat Top Modular Belt with Sidewall for Robust Material Conveying and Containment

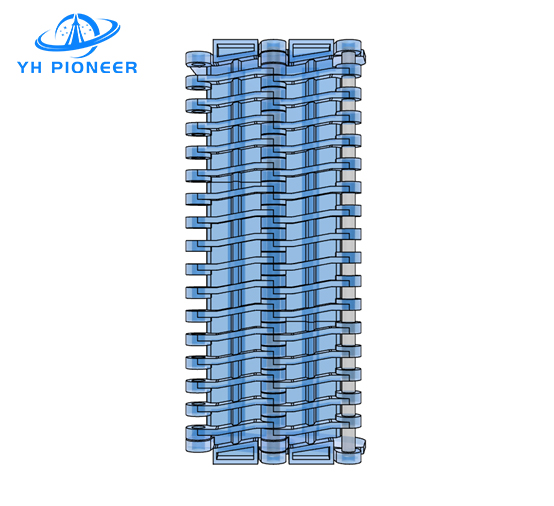

Flat Top Modular Belt with Flight and Sidewall
We provide professional Flat Top Modular Belt with Flight and Sidewall , support the conveying of various types , and provide a variety of conveying types.
The Flat Top Modular Belt with Flight and Sidewall is a specialized conveyor belt designed for medium-sized, medium-pressure container, box, bottle, and other packaging machine applications. This belt is engineered to provide a high level of control and support during the transportation of various items, particularly in the food processing and packaging industries.
PRODUCT ADVANTAGE
*Enhanced Support: The sidewalls provide additional support and guidance, preventing
material spillage or displacement during transit.
*Modular Design: The belt's modular chain plates interlock, enhancing the
conveyor's strength and stability.
*Customizable: The height of the flights and sidewalls can be adjusted to
accommodate various material sizes and types.
*Ease of Installation: The lightweight plastic belt is easy to install and operates
quietly.
*Smooth Operation: Benefits from self-lubricating properties that reduce energy
consumption and improve efficiency.
*Versatility: Suitable for a wide range of applications in industries such as
food, beverages, pharmaceuticals, and packaging.
*Chemical Resistance: Resistant to cleaning agents and capable of withstanding
high-temperature water, making it suitable for harsh environments.
*Anti-Contamination: Molded from hygienic plastic materials with no pores or gaps that
could harbor contaminants.
*Low Maintenance: The chain-driven mechanism reduces the likelihood of belt snaking
or skewing, simplifying maintenance.
*Long Service Life: Resistant to acids and alkalis, minimizing the frequency of belt
replacement and reducing costs.
PRODUCT SPECIFICATIONS
*Belt Material: Polyoxymethylene (POM), offering excellent wear resistance and
chemical stability within a temperature range of -30°C to 90°C.
*Pin Material: Polypropylene (PP), ensuring a lightweight and durable structure.

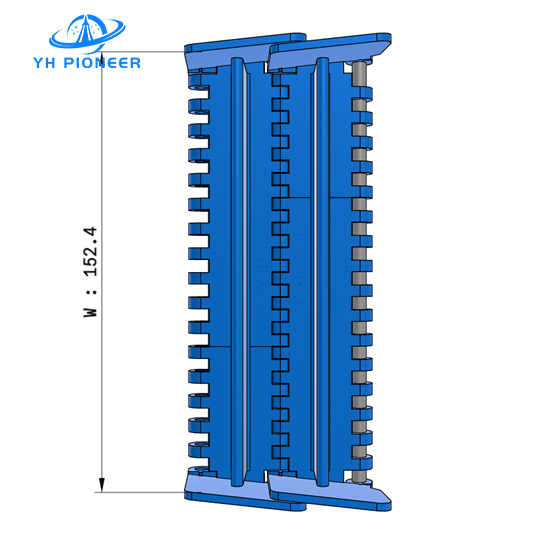

*Belt Width: 304.8 mm, with a standard width calculated as W = 152.4 mm
multiplied by the number of standard modules (N).
*Center Distance Between Flights (K): 1 module width.
*Flight Height (H): 25 mm.
*Distance from End Face to Sidewall (M): 25.2 mm.
PRODUCT MATERIALS
Belt Base: Constructed from durable engineering plastics such as POM, PP, or PE, which are known for their wear resistance and lightweight properties.
PRODUCT APPLICATIONS
*Intermediate Conveying Systems: For the transportation of medium-sized loads in packaging and
processing lines.
*Food and Beverage Industry: Suitable for the gentle and controlled movement of food items and
beverages during packaging.
*Pharmaceutical Packaging: Ideal for the precise handling of pharmaceutical products, ensuring
safety and hygiene.
*Chemical and Cosmetic Industry: Capable of handling the specific needs of these industries,
including the handling of small containers and vials.
PRODUCT PARAMENTERS
Apply to | Mainly suitable for conveyor belts of packaging machines such as middle section conveying systems, medium-sized and medium-pressure cans, boxes, bottles, etc. |
Modular belt material | POM |
Pin material | PP |
The multiply of standard modular belt width | 1-10 |
| Modular belt width | 152.4mm |
| The centre distance between two cleats | 1-5 |
| Flight height | 25/50 mm |
| Modular belt width | Standard modular belt width: W=152.4*N |
*It can be modified according to customer requirements.
Please contact us for the latest specification stock and quotation
