Adjustable Flat Top Conveyor Belt with Side Flights for Customizable Material Handling
Flat Top Modular Belt with Flight
We provide professional Flat Top Modular Belt with Flight , support the conveying of various types , and provide a variety of conveying types.
The Flat Top Modular Belt with Flight is an advanced conveyor belt system designed for applications requiring the gentle and controlled elevation of materials. This belt is particularly well-suited for the food industry, such as the washing and elevating of various types of fruit, where a flat and stable surface is essential for effective transport.
PRODUCT ADVANTAGE
*Staggered Flight Design: The unique staggered pattern of the flights offers additional
support and prevents material spillage during conveyance.
*Adjustable Flights: The height of the flights can be adjusted to accommodate various
material sizes and types, ensuring a customized fit for specific
conveying needs.
*Durable Construction: The use of POM and PP materials ensures the belt is resistant to
wear and tear, suitable for long-term use in industrial
environments.
*Material Containment: The staggered flights effectively prevent material spillage during
transport.
*Adjustability: The height of the flights can be adjusted to accommodate a wide
range of product sizes.
Durability: The metal belt and flights offer excellent wear
resistance and are suitable for harsh industrial environments.
*Low Maintenance: The simple design facilitates easy cleaning and maintenance.
*High Load Capacity: The metal belt is designed to handle heavy loads.
*Stability: The flat top belt provides a stable platform for material
transport, minimizing movement during conveyance.
*Customizability: The design and specifications of the belt can be tailored to meet
the specific demands of different production lines.
*Versatility: Widely applicable across various industries, including food
processing, packaging, chemicals, and pharmaceuticals.
PRODUCT SPECIFICATIONS
*Belt Material: Polyoxymethylene (POM), known for its strength and wear
resistance.
*Pin Material: Polypropylene (PP), ensuring durability and chemical
stability.
*Belt Width: 762.0 mm, providing ample surface area for material transport.
*End Face to Flight Distance: 16.90 mm, allowing for a compact design.
*Flight to Flight Spacing: 33.80 mm, offering sufficient space between flights for material
support.

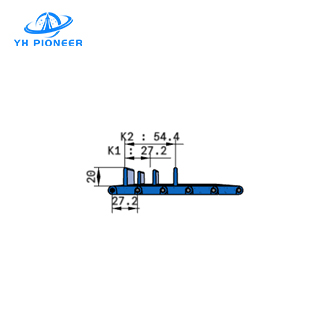

*Center Distance Between Adjacent Flights (K1): 27.2 mm, and between staggered flights (K2): 54.4 mm, creating a
staggered pattern for enhanced support.
*Flight Height: 20 mm, providing the necessary elevation and containment for
materials during transport.
PRODUCT MATERIALS
The base of the chain belt is typically made from durable metals
such as stainless steel or carbon steel, providing the necessary
strength and durability.
The flat top part may be constructed from plastic materials like
POM, PP, or PE, or metal, depending on the load and application
requirements.
Flights are usually made from the same material as the belt base to
ensure consistency and robustness.
PRODUCT APPLICATIONS
*Fruit Washing and Elevating: For gentle and effective transport of fruits during the washing
process.
*Food Processing: Suitable for various food materials that require a flat and stable
surface for transport.
*Packaging: Can be used in automated packaging lines where controlled elevation
of products is needed.
*Chemical and Pharmaceutical Industries: Applicable where cleanliness, precision, and material containment
are crucial.
PRODUCT PARAMENTERS
Apply to | Mainly suitable for various kinds of fruit cleaning,elevating and conveying |
Modular belt material | POM |
Pin material | PP |
Modular belt width | 762.0 |
| Progress option | 2-6 |
| Distance between flight and belt side: 8.45*Y,M≤177.45 | 16.9mm |
| Progress option | 4-17 |
| Flight distance : 8.45*E | 33.8mm |
| The centre distance between two adjacent cleats | 27.2 |
| The centre distance two misaligned cleats | 54.4-108.8 |
| Flight height | 20 |
*It can be modified according to customer requirements.
Please contact us for the latest specification stock and quotation
