Easy to Clean Modular Belt with Flights for Sanitary Conveying in Food and Pharmaceutical Industries

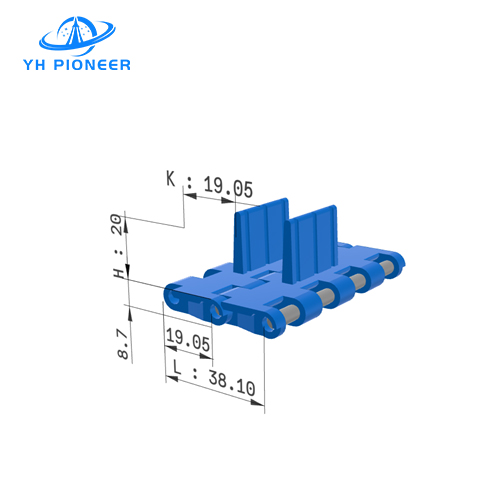

Modular Belt with Flight
We provide professional Modular Belt with Flight with Friction, support the conveying of various types , and provide a variety of conveying types.
The Modular Belt with Flight is a specialized conveyor belt designed for applications requiring the controlled elevation and transportation of materials. This belt features integrated flights or side guides that prevent spillage, making it ideal for industries where material containment during transit is crucial.
PRODUCT ADVANTAGE
*Reduced Friction: The belt's surface with protrusions effectively decreases friction
between the belt and the conveyed materials, suitable for delicate
or abrasion-sensitive products.
*High Load Capacity: The POM material offers a high working load capacity, making it
ideal for heavy-load transportation requirements.
*Chemical Resistance: PP pins provide good chemical resistance, suitable for use in
acidic environments and the chemical industry.
*Temperature Adaptability: Both POM and PP materials are stable over a wide temperature
range, ensuring reliable operation in various conditions.
*Low Maintenance: The wear resistance and self-lubricating properties of the
materials reduce maintenance needs and costs.
*Long Service Life: The durable materials and design contribute to an extended service
life for the conveyor belt.
*Versatility: Suitable for a wide range of industrial applications, particularly
in the automation of food, pharmaceutical, and chemical industries.
*Easy to Clean: The smooth surface is easy to clean, meeting hygiene and
sanitation standards.
PRODUCT SPECIFICATIONS
*Belt Material: Polyoxymethylene (POM), suitable for temperatures ranging from
-30°C to 90°C.
*Pin Material: Polypropylene (PP).
*Belt Load Capacity: 17280N per meter for POM.
*Belt Opening Rate: 8% for optimal ventilation and material release.
*Belt Color: Available in white or coffee color.
*Weight: 13.3 kg/m^2.
*Standard Module Width Multiplier: 1.
*Belt Width: 76.2 mm.
*Standard Pitch Multiplier: 1.
*Standard Belt Width: W = 76.2 mm multiplied by the number of standard modules (N).
PRODUCT MATERIALS
*Belt: Constructed from POM, known for its wear resistance,
self-lubrication, and high load-bearing capacity.
*Axles: Made from PP, ensuring chemical resistance and stability within a
specific temperature range.
PRODUCT APPLICATIONS
*The Perforated Modular Belt with Friction is ideal for:
*High-Speed Conveying: In applications requiring rapid
transportation of goods with minimal friction.
*Heavy-Load Elevation: Designed to handle the demands of lifting
and moving heavy loads efficiently.
*Food Processing: Gentle on food products and easy to clean,
suitable for food industry applications.
*Pharmaceutical Industry: Meets the hygiene and precision
requirements of pharmaceutical manufacturing.
*Chemical Industry: Resistant to chemicals and suitable for use in
corrosive environments.
PRODUCT PARAMENTERS
| Apply to | It is suitable for elevating various kinds of products. |
| The multiply of standard modular belt width | 1-10 |
| Modular belt width | 76.2mm |
| The centre distance between two cleats | 1-5 |
| Flight Height | 20mm |
| The distance between belt side and cleat | 25-50mm |
| Modular belt width | Standard Modular Belt Width: W=76.2*N |
*It can be modified according to customer requirements.
Please contact us for the latest specification stock and quotation
