Stable and Reliable Bag Palletizer Machine with ±0.15mm
Repeatability for Precision Palletizing

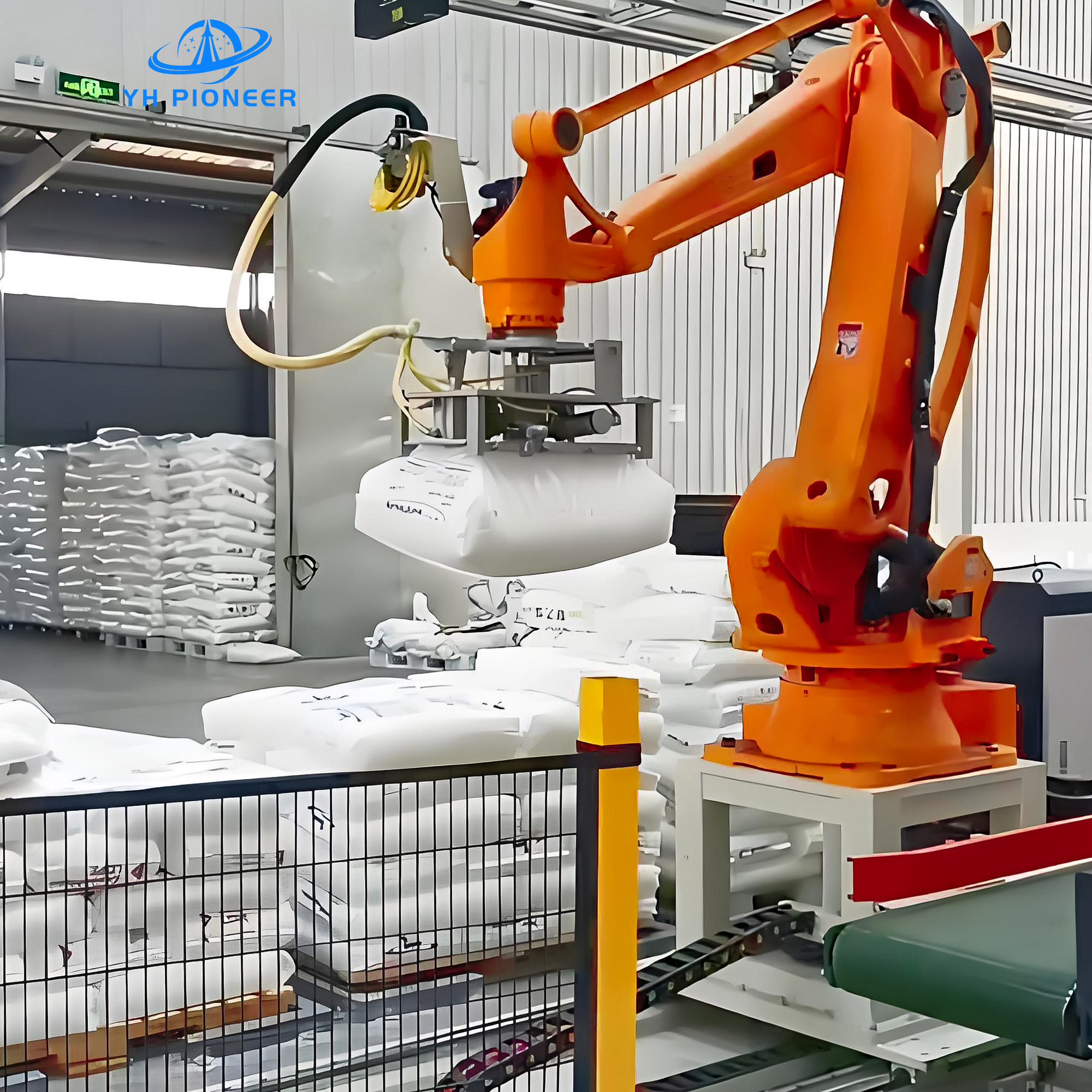

Bag Palletizer Machine
We provide professional Bag Palletizer Machine that can accurately and efficiently stack and arrange goods, significantly improving the operational efficiency of warehousing and logistics.
The Bag Palletizer Machine is a highly efficient automated solution designed for the stacking of bags onto pallets. It is widely used in industries such as agriculture, construction, and chemistry, where the handling of bagged materials is a critical part of the production and distribution process. This machine combines advanced automation with robust construction to ensure reliable and precise palletizing operations.
PRODUCT PARAMENTERS
| Number of axles | 4 axes; Vertical multi-joint type |
| Texture of wood | carbon steel |
| Maximum load | 210kg |
| Repetitive positioning accuracy | ±0.15mm |
| Power | 7KVA |
| Maximum working radius | 2962mm |
| Angle of rotation | 360° |
| Maximum palletizing height | 2.7 M |
| Palletizing speed | 600-800 times/hour |
| Workspace temperature | 0~45°C |
| Weight of this machine | 1200kg |
| Applicable type | Bags, boxes, barrels, baskets and other shapes |
*It can be modified according to customer requirements.
Please click the form below to download and fill it out to inquire
about detailed specifications and parameter options.
TECHNOLOGICAL ADVANTAGE
High Efficiency: Capable of palletizing at a high speed, significantly increasing
production throughput.
High Precision: Equipped with advanced control systems and sensors to ensure
precise placement of bags.
Strong Adaptability: Can handle various bag sizes and shapes, adapting to different
product requirements.
Safety and Stability: Features multiple safety mechanisms to ensure safe operation in
various environments.
Space-Saving: Compact design with minimal footprint, suitable for
space-constrained facilities.
Low Maintenance: Simple structure with easy access for maintenance, reducing
downtime and operational costs.
PRODUCT SPECIFICATIONS
Number of Axes: 4 axes; Vertical multi-joint type.
Material: Carbon steel.
Maximum Load: 210kg.
Repeatability: ±0.15mm.
Power: 7KVA.
Maximum Working Radius: 2962mm.
Rotation Angle: 360°.
Maximum Palletizing Height: 2.7 M.
Palletizing Speed: 600-800 times/hour.
Workspace Temperature: 0~45°C.
Machine Weight: 1200kg.
Applicable Types: Bags, boxes, barrels, baskets, and other shapes.
COMPONENT MATERIALS
Robotic Arm: Constructed from high-quality aluminum alloy for lightweight and
high strength.
End Effectors: Made from stainless steel (e.g., 304 stainless steel) to ensure
durability and reliability.
Base and Joints: Cast iron or high-strength alloy steel provides stable support and
precise motion control.
Control System Enclosure: Cold-rolled steel with powder coating or aluminum alloy for robust
protection.
PRODUCT APPLICATION
Agricultural Industry: Ideal for palletizing bags of grains, fertilizers, and animal
feed.
Construction Materials: Used for stacking bags of cement, tiles, and other construction
supplies.
Chemical Industry: Suitable for handling bags of chemicals, powders, and granular
materials.
Food and Beverage: Efficiently palletizes bags of food products, ensuring minimal
product damage.
Manufacturing: Supports the palletizing of various bagged components and finished
goods in manufacturing settings.
SERVIC and SUPPORT
We provide comprehensive maintenance services to ensure the Bag
Palletizer Machine remains in optimal condition. Our dedicated
support team is available to assist with any technical queries or
service needs.
